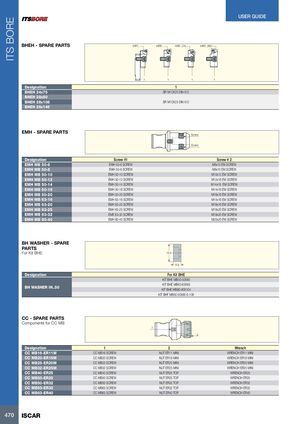

ITS BORE USER GUIDE BHEH - SPARE PARTS IHFF... IHRF... HRF...CH.. IHRF...BW.. 1 1 1 1 Designation 1 BHEH 24x75 SR M1OX20 DIN 912 BHEH 28x80 BHEH 28x108 SR M1OX25 DIN 912 BHEH 28x148 EMH - SPARE PARTS Screw Screw Designation Screw #1 Screw # 2 EMH MB 50-6 EMH 50-6 SCREW M6x10 EM SCREW EMH MB 50-8 EMH 50-8 SCREW M8x10 EM SCREW EMH MB 50-10 EMH 50-10 SCREW M10x12 EM SCREW EMH MB 50-12 EMH 50-12 SCREW M12x16 EM SCREW EMH MB 50-14 EMH 50-14 SCREW M14x16 EM SCREW EMH MB 50-16 EMH 50-16 SCREW M14x16 EM SCREW EMH MB 50-20 EMH 50-20 SCREW M16x16 EM SCREW EMH MB 63-16 EMH 63-16 SCREW M14x16 EM SCREW EMH MB 63-20 EMH 63-20 SCREW M16x16 EM SCREW EMH MB 63-25 EMH 63-25 SCREW M18x20 EM SCREW EMH MB 63-32 EME 63-32 SCREW M18x20 EM SCREW EMH MB 80-40 EMH 80-40 SCREW M20x20 EM SCREW BH WASHER - SPARE PARTS For Kit BHE 15.5 6.9 Designation For Kit BHE KIT BHE MB50-50X80 BH WASHER IH..50 KIT BHE MB63-63X89KIT BHE MB80-80X104 KIT BHF MB50-50X80 6-108 CC - SPARE PARTS Components for CC MB 1 2 Designation 1 2 Wrench CC MB16-ER11M CC MB16 SCREW NUT ER11 MINI WRENCH ER11 MINI CC MB20-ER16M CC MB20 SCREW NUT ER16 MINI WRENCH ER16 MINI CC MB25-ER20M CC MB25 SCREW NUT ER20 MINI WRENCH ER20 MINI CC MB32-ER25M CC MB32 SCREW NUT ER25 MINI WRENCH ER25 MINI CC MB40-ER25 CC MB40 SCREW NUT ER25 TOP WRENCH ER25 CC MB50-ER25 CC MB50 SCREW NUT ER25 TOP WRENCH ER25 CC MB50-ER32 CC MB50 SCREW NUT ER32 TOP WRENCH ER32 CC MB63-ER32 CC MB63 SCREW NUT ER32 TOP WRENCH ER32 CC MB63-ER40 CC MB63 SCREW NUT ER40 TOP WRENCH ER40 470 ISCAR
