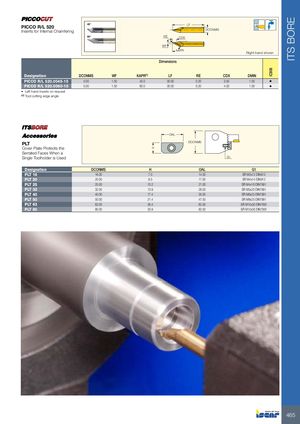

Каталог Iscar расточные системы 2022 - страница 83

IC908 ITS BORE PICCO R/L 520 LF Inserts for Internal Chamfering DCONMS RE CDX WF KAPR Right-hand shown Dimensions Designation DCONMS WF KAPR(1) LF RE CDX DMIN PICCO R/L 520.0045-15 5.00 1.50 45.0 30.00 0.20 3.50 1.00 • PICCO R/L 520.0060-15 5.00 1.50 60.0 30.00 0.20 4.00 1.00 • • Left hand inserts on request (1) Tool cutting edge angle OAL PLT DCONMS Cover Plate Protects the H Serrated Faces When a Single Toolholder is Used G1 Designation DCONMS H OAL G1 PLT 16 16.00 7.0 14.00 SR M3x12 DIN912 PLT 20 20.00 8.5 17.00 SR M4x14 DIN912 PLT 25 25.00 10.2 21.00 SR M4x16 DIN7991 PLT 32 32.00 13.9 28.00 SR M5x20 DIN7991 PLT 40 40.00 17.4 35.00 SR M6x25 DIN7991 PLT 50 50.00 21.4 47.50 SR M8x25 DIN7991 PLT 63 63.00 26.4 62.00 SR M10x30 DIN7991 PLT 80 80.00 33.9 82.50 SR M12x35 DIN7991 465
