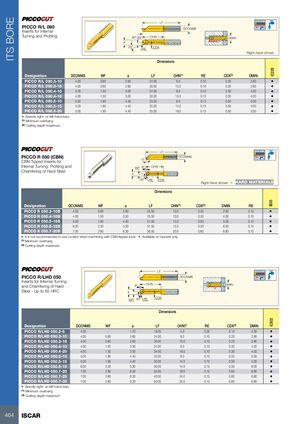

ITS BORE IC228IB55IC902 LF PICCO R/L 090 DCONMS Inserts for Internal Turning and Profiling 90° WF OHN DMIN a 20° RE CDX Right-hand shown Dimensions Designation DCONMS WF a LF OHN(1) RE CDX(2) DMIN PICCO R/L 090.3-10 4.00 0.60 2.60 24.00 9.0 0.10 0.20 2.80 • PICCO R/L 090.3-16 4.00 0.60 2.60 30.00 15.0 0.10 0.20 2.80 • PICCO R/L 090.4-10 4.00 1.50 3.50 24.00 9.0 0.10 0.30 4.00 • PICCO R/L 090.4-16 4.00 1.50 3.50 30.00 15.0 0.10 0.30 4.00 • PICCO R/L 090.5-10 5.00 1.90 4.40 25.00 9.0 0.15 0.50 5.00 • PICCO R/L 090.5-15 5.00 1.90 4.40 30.00 14.0 0.15 0.50 5.00 • PICCO R/L 090.5-20 5.00 1.90 4.40 35.00 19.0 0.15 0.50 5.00 • • Specify right- or left-hand bars (1) Minimum overhang (2) Cutting depth maximum LF PICCO R 050 (CBN)CBN Tipped Inserts for DCONMS5° Internal Turning, Profiling and WF 8° OHN Chamfering of Hard Steel a 20° RE CDX Right-hand shown • HARD MATERIALS Dimensions Designation DCONMS WF a LF OHN(1) CDX(2) DMIN RE PICCO R 050.3-10B 4.00 0.60 2.60 25.50 10.0 0.20 2.80 0.10 • PICCO R 050.4-10B 4.00 1.50 3.50 25.50 10.0 0.30 4.00 0.10 • PICCO R 050.5-15B 5.00 1.90 4.40 31.50 15.0 0.50 5.00 0.15 • PICCO R 050.6-15B 6.00 2.30 5.30 31.50 15.0 0.50 6.00 0.15 • PICCO R 050.7-20B 7.00 2.80 6.30 36.50 20.0 0.60 6.80 0.15 • • It is not recommended to use coolant when machining with CBN tipped tools • Available on request only (1) Minimum overhang (2) Cutting depth maximum LF PICCO R/LHD 050 DCONMS Inserts for Internal Turning and Chamfering of Hard 8° OHN DMIN Steel - Up to 65 HRC a WF 20° RE CDX Dimensions Designation DCONMS WF a LF OHN(1) RE CDX(2) DMIN PICCO R/LHD 050.2-5 4.00 - 1.70 19.00 4.0 0.05 0.10 2.00 • PICCO R/LHD 050.3-10 4.00 0.60 2.60 24.00 9.0 0.10 0.20 2.80 • PICCO R/LHD 050.3-16 4.00 0.60 2.60 30.00 15.0 0.10 0.20 2.80 • PICCO R/LHD 050.4-10 4.00 1.50 3.50 24.00 9.0 0.10 0.30 4.00 • PICCO R/LHD 050.4-20 4.00 1.50 3.50 34.00 19.0 0.10 0.30 4.00 • PICCO R/LHD 050.5-10 5.00 1.90 4.40 25.00 9.0 0.15 0.50 5.00 • PICCO R/LHD 050.5-15 5.00 1.90 4.40 30.00 14.0 0.15 0.50 5.00 • PICCO R/LHD 050.6-15 6.00 2.30 5.30 30.00 14.0 0.15 0.50 6.00 • PICCO R/LHD 050.7-20 7.00 2.80 6.30 35.00 19.0 0.15 0.60 6.80 • PICCO R/LHD 050.7-25 7.00 2.80 6.30 40.00 24.0 0.15 0.60 6.80 • PICCO R/LHD 050.7-35 7.00 2.80 6.30 50.00 34.0 0.15 0.60 6.80 • • Specify right- or left-hand bars (1) Minimum overhang (2) Cutting depth maximum 464 ISCAR
