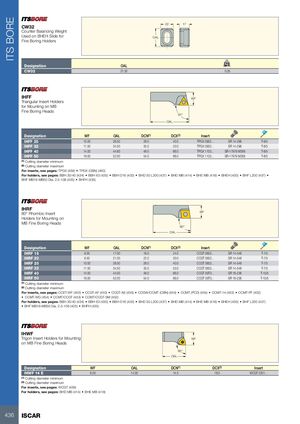

CW32 22 17
Counter Balancing Weight Used on BHEH Slide for OAL Fine Boring Holders
| Designation | OAL | kg |
| CW32 | 31.50 | 0.05 |
IHFF
WF
Triangular Insert Holders
for Mounting on MB
Fine Boring Heads
91° OAL
| Designation | WF | OAL | DCN(1) | DCX(2) | Insert | ||
| IHFF 25 | 10.00 | 26.50 | 28.0 | 40.0 | TPGX 0902... | SR 14-298 | T-8/5 |
| IHFF 32 | 11.50 | 34.50 | 35.0 | 53.0 | TPGX 0902... | SR 14-298 | T-8/5 |
| IHFF 40 | 14.00 | 44.60 | 48.0 | 66.0 | TPGX 1103... | SR-17979 M3X8 | T-8/5 |
| IHFF 50 | 19.00 | 52.00 | 54.0 | 86.0 | TPGX 1103... | SR-17979 M3X8 | T-8/5 |
(1) Cutting diameter minimum (2) Cutting diameter maximum For inserts, see pages: TPGX (459) TPGX (CBN) (460) For holders, see pages: BBH 30/40 (434) BBH 63 (435) BBH D16 (433) BHD 50 L200 (437) BHD MB (414) BHE MB (418) BHEH (435) BHF L200 (437)
BHF MB16-MB50 Dia. 2.5-108 (425) BHFH (435)
IHRF
80° Rhombic Insert
Holders for Mounting on
MB Fine Boring Heads
WF
90° OAL
| Designation | WF | OAL | DCN(1) | DCX(2) | Insert | ||
| IHRF 16 | 8.00 | 17.00 | 18.0 | 24.0 | CCGT 0602... | SR 14-548 | T-7/5 |
| IHRF 20 | 8.50 | 21.00 | 22.0 | 30.0 | CCGT 0602... | SR 14-548 | T-7/5 |
| IHRF 25 | 10.00 | 26.50 | 28.0 | 40.0 | CCGT 0602... | SR 14-548 | T-7/5 |
| IHRF 32 | 11.50 | 34.50 | 35.0 | 53.0 | CCGT 0602... | SR 14-548 | T-7/5 |
| IHRF 40 | 14.00 | 44.00 | 48.0 | 66.0 | CCGT 09T3... | SR 16-236 | T-15/5 |
| IHRF 50 | 19.00 | 52.00 | 54.0 | 86.0 | CCGT 09T3... | SR 16-236 | T-15/5 |
(1) Cutting diameter minimum (2) Cutting diameter maximum
For inserts, see pages: CCET-WF (453) CCGT-AF (455) CCGT-AS (455) CCGW/CCMT (CBN) (454) CCMT (PCD) (454) CCMT-14 (453) CCMT-PF (452)
- CCMT-WG (454)
- CCMT/CCGT (453)
- CCMT/CCGT-SM (452)
For holders, see pages: BBH 30/40 (434) BBH 63 (435) BBH D16 (433) BHD 50 L200 (437) BHD MB (414) BHE MB (418) BHEH (435) BHF L200 (437)
- BHF MB16-MB50 Dia. 2.5-108 (425)
- BHFH (435)
IHWF
Trigon Insert Holders for Mounting WF
on MB Fine Boring Heads
95° OAL
| Designation | WF | OAL | DCN(1) | DCX(2) | Insert | |
| IHWF 14 E | 8.00 | 14.00 | 14.5 | 18.0 | WCGT 0201... |
(1) Cutting diameter minimum (2) Cutting diameter maximum For inserts, see pages: WCGT (459) For holders, see pages: BHD MB (414) BHE MB (418)
