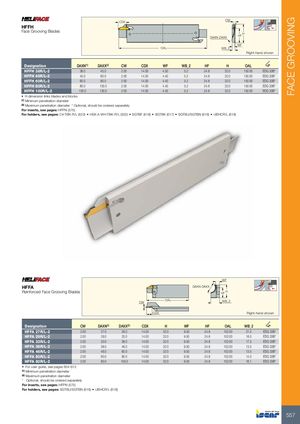

HFFH
Face Grooving Blades
DAXN-DAXX WF OAL WB_2 Right-hand shown
| Designation | DAXN(1) | DAXX(2) | CW | CDX | WF | WB_2 | HF | H | OAL | |
| HFFH 38R/L-2 | 38.0 | 45.0 | 2.00 | 14.00 | 4.50 | 5.2 | 24.8 | 32.0 | 150.00 | EDG 33B* |
| HFFH 45R/L-2 | 45.0 | 60.0 | 2.00 | 14.00 | 4.40 | 5.2 | 24.8 | 32.0 | 150.00 | EDG 33B* |
| HFFH 60R/L-2 | 60.0 | 80.0 | 2.00 | 14.00 | 4.40 | 5.2 | 24.8 | 32.0 | 150.00 | EDG 33B* |
| HFFH 80R/L-2 | 80.0 | 100.0 | 2.00 | 14.00 | 4.40 | 5.2 | 24.8 | 32.0 | 150.00 | EDG 33B* |
| HFFH 100R/L-2 | 100.0 | 130.0 | 2.00 | 14.00 | 4.40 | 5.2 | 24.8 | 32.0 | 150.00 | EDG 33B* |
- H dimension links blades and blocks
(1) Minimum penetration diameter (2) Maximum penetration diameter * Optional, should be ordered separately
For inserts, see pages: HFPN (575)
For holders, see pages: C#-TBK-R/L (623) HSK A-WH-TBK-R/L (632) SGTBF (618) SGTBK (617) SGTBU/SGTBN (616) UBHCR/L (618)
WF HFFA DAXN-DAXX
Reinforced Face Grooving Blades
HF H OAL WB_2 CW CDX Right-hand shown
| Designation | CW | DAXN(1) | DAXX(2) | CDX | H | WF | HF | OAL | WB_2 | |
| HFFA 27R/L-2 | 2.00 | 27.0 | 29.0 | 14.00 | 32.0 | 9.50 | 24.8 | 102.00 | 21.0 | EDG 33B* |
| HFFA 29R/L-2 | 2.00 | 29.0 | 33.0 | 14.00 | 32.0 | 9.50 | 24.8 | 102.00 | 18.5 | EDG 33B* |
| HFFA 33R/L-2 | 2.00 | 33.0 | 38.0 | 14.00 | 32.0 | 9.50 | 24.8 | 102.00 | 17.5 | EDG 33B* |
| HFFA 38R/L-2 | 2.00 | 38.0 | 46.0 | 14.00 | 32.0 | 9.50 | 24.8 | 102.00 | 13.5 | EDG 33B* |
| HFFA 46R/L-2 | 2.00 | 46.0 | 60.0 | 14.00 | 32.0 | 9.50 | 24.8 | 102.00 | 13.5 | EDG 33B* |
| HFFA 60R/L-2 | 2.00 | 60.0 | 80.0 | 14.00 | 32.0 | 9.50 | 24.8 | 102.00 | 14.0 | EDG 33B* |
| HFFA 80R/L-2 | 2.00 | 80.0 | 105.0 | 14.00 | 32.0 | 9.50 | 24.8 | 102.00 | 16.1 | EDG 33B* |
- For user guide, see pages 604-613
(1) Minimum penetration diameter (2) Maximum penetration diameter * Optional, should be ordered separately
For inserts, see pages: HFPN (575)
For holders, see pages: SGTBU/SGTBN (616) UBHCR/L (618)
