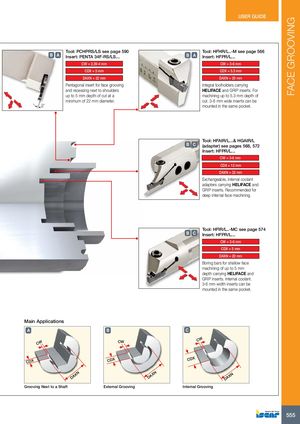

Tool: PCHPRS/LS see page 590 Tool: HFHR/L..-M see page 566

A B Insert: PENTA 34F-RS/LS…		A B Insert: HFPR/L…
	CW = 2.39-4 mm		CW = 3-6 mm
	CDX = 5 mm		CDX = 5.3 mm
	DAXN = 22 mm		DAXN = 20 mm
Pentagonal insert for face grooving		Integral toolholders carrying
and recessing next to shoulders		HELIFACE and GRIP inserts. For
up to 5 mm depth of cut at a		machining up to 5.3 mm depth of
minimum of 22 mm diameter.		cut. 3-6 mm wide inserts can be

mounted in the same pocket.

Tool: HFAIR/L…& HGAIR/L

B C (adapter) see pages 568, 572

Insert: HFPR/L… CW = 3-6 mm CDX = 12 mm DAXN = 32 mm

Exchangeable, internal coolant adapters carrying HELIFACE and GRIP inserts. Recommended for deep internal face machining.

Tool: HFIR/L..-MC see page 574

B C Insert: HFPR/L…

CW = 3-6 mm CDX = 5 mm DAXN = 20 mm Boring bars for shallow face

machining of up to 5 mm depth carrying HELIFACE and GRIP inserts. Internal coolant. 3-6 mm width inserts can be mounted in the same pocket.

Tool: TNFFA see page 584 Main Applications Insert: TNF 3-6C…

A B C

CW CW CW

CDX CDX CDX

DAXN DAXN DAXN

Grooving Next to a Shaft External Grooving Internal Grooving
