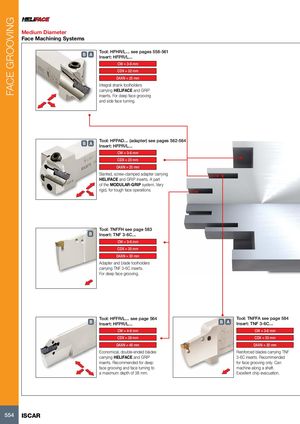

Medium Diameter

Face Machining Systems

B A

Tool: HFHR/L… see pages 558-561 Insert: HFPR/L CW = 3-6 mm CDX = 32 mm DAXN = 25 mm Integral shank toolholders carrying HELIFACE and GRIP inserts. For deep face grooving and side face turning.

Tool: HFPAD… (adapter) see pages 562-564

B A …

Insert: HFPR/L CW = 3-6 mm CDX = 20 mm DAXN = 25 mm

Slanted, screw-clamped adapter carrying HELIFACE and GRIP inserts. A part of the MODULAR-GRIP system. Very rigid, for tough face operations.

Tool: TNFFH see page 583 B Insert: TNF 3-6C… CW = 3-6 mm CDX = 35 mm DAXN = 30 mm Adapter and blade toolholders carrying TNF 3-6C inserts. For deep face grooving.

Tool: HFFR/L… see page 564 Tool: TNFFA see page 584

BA B … Insert: TNF 3-6C…
Insert: HFPR/L
CW = 4-6 mmCW = 3-6 mm
CDX = 38 mmCDX = 35 mm
DAXN = 48 mmDAXN = 30 mm
Economical, double-ended bladesReinforced blades carrying TNF
carrying HELIFACE and GRIP3-6C inserts. Recommended
inserts. Recommended for deepfor face grooving only. Can
face grooving and face turning tomachine along a shaft.
a maximum depth of 38 mm.Excellent chip evacuation.
