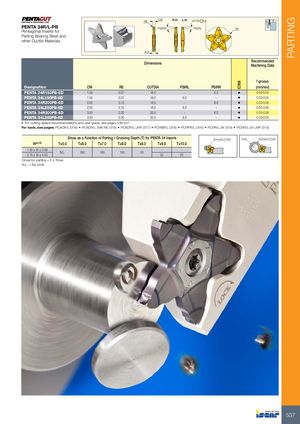

Каталог Iscar отрезка 2022 - страница 79
Навигация
Токарные инструменты Iscar (часть 1) 2026
Каталог Iscar монолитные фрезы 2022
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar резьбонарезные фрезы
Каталог Iscar расточные системы
Каталог Iscar токарный инструмент 2017
| PENTA 34R/L-PB Pentagonal Inserts for Parting Bearing Steel and other Ductile Materials | CW RE 4.3 PSIRR | R.H. L.H. ±0.04 PSIRL | 34 | ||||
| Dimensions | Recommended Machining Data | ||||||
| Designation | CW | RE | CUTDIA | PSIRL | PSIRR | IC908 | f groove (mm/rev) |
| PENTA 34R150PB-6D | 1.50 | 0.07 | 18.0 | - | 6.0 | • | 0.03-0.05 |
| PENTA 34L150PB-6D | 1.50 | 0.07 | 18.0 | 6.0 | - | • | 0.03-0.05 |
| PENTA 34R200PB-6D | 2.00 | 0.10 | 18.0 | - | 6.0 | • | 0.03-0.06 |
| PENTA 34L200PB-6D | 2.00 | 0.10 | 18.0 | 6.0 | - | • | 0.03-0.06 |
| PENTA 34R300PB-6D | 3.00 | 0.20 | 20.0 | - | 6.0 | • | 0.03-0.08 |
| PENTA 34L300PB-6D | 3.00 | 0.20 | 20.0 | 6.0 | - | • | 0.03-0.08 |
- For cutting speed recommendations and user guide, see pages 538-547
For tools, see pages: PCADR/L (316) PCADR/L 34N-RE (318) PCADR/L-JHP (317) PCHBR/L (318) PCHPR/L (316) PCHR/L-34 (315) PCHR/L-34-JHP (315)
| Dm | ax as a Func | tion of Parting | / Grooving D | epth (T) for P | ENTA 34 Ins | erts | ØDmax(CUTDIA) | ØDmax(CUTDIA) Tmax | |
| W±0.02 | T≤5.0 | T≤6.0 | T≤7.0 | T≤8.0 | T≤8.5 | T≤9.0 | T≤10.0 | ||
| 1.50 ≤ W ≤ 2.69 2.70 ≤ W ≤ 4.00 | N.L. | 350 | 165 | 100 | 55 | - 55 | - 20 |
Dmax for parting = 2 x Tmax N.L. = No Limit
