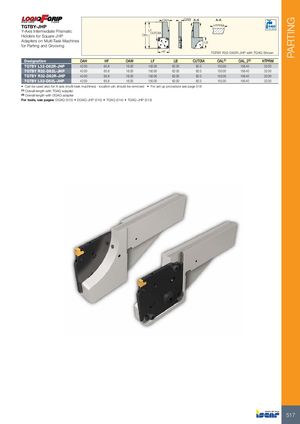

| TGTBY-JHP | OAH | OAW A-A | A-A HTPRM | Bar Max | ||||
| Y-Axis Intermediate Prismatic Holders for Square JHP | OAL LF CUTDIA | |||||||
| Adapters on Multi-Task Machines | L | B | ||||||
| for Parting and Grooving | ||||||||
| HF | TGTBY R32-D8 | 2R-JHP with T | GAQ Shown | |||||
| Designation | OAH | HF | OAW | LF | LB CUTDIA | OAL(1) | OAL2(2) | HTPRM |
| TGTBY L32-D82R-JHP | 42.00 | 65.8 | 16.00 | 150.00 | 62.00 82.0 | 153.00 | 156.40 | 32.00 |
| TGTBY R32-D82L-JHP | 42.00 | 65.8 | 16.00 | 150.00 | 62.00 82.0 | 153.00 | 156.40 | 32.00 |
| TGTBY R32-D82R-JHP | 42.00 | 65.8 | 16.00 | 150.00 | 62.00 82.0 | 153.00 | 156.40 | 32.00 |
| TGTBY L32-D82L-JHP | 42.00 | 65.8 | 16.00 | 150.00 | 62.00 82.0 | 153.00 | 156.40 | 32.00 |
- Can be used also for X-axis (multi-task machines) - location pin should be removed
- For set up procedure see page 518
(1) Overall length with TGAQ adapter (2) Overall length with DGAQ adapter
For tools, see pages: DGAQ (515) DGAQ-JHP (515) TGAQ (514) TGAQ-JHP (513)
