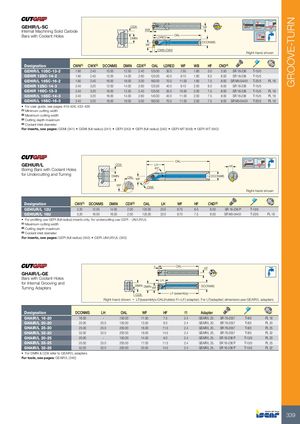

GROOVE-TURN GEHIR/L-SC CDX HF Internal Machining Solid Carbide WB Bars with Coolant Holes OALDMINLDRED DCONMS WF CWN-CWX Right-hand shown Designation CWN(1) CWX(2) DCONMS DMIN CDX(3) OAL LDRED WF WB HF CND(4) GEHIR/L 10SC-13-2 1.90 2.40 10.00 12.50 2.40 125.00 30.0 7.50 1.60 5.0 3.50 SR 16-236 T-15/5 GEHIR 12SC-14-2 1.90 2.40 12.00 14.00 2.60 125.00 40.0 9.10 1.60 6.0 6.00 SR 16-236 T-15/5 GEHIR/L 16SC-16-2 1.90 2.40 16.00 16.00 3.00 160.00 70.0 11.00 1.60 7.5 8.00 SR M5-04451 T-20/5 PL 16 GEHIR 12SC-14-3 2.40 3.20 12.00 14.00 2.60 125.00 40.0 9.10 2.00 6.0 6.00 SR 16-236 T-15/5 GEHIR 16SC-13-3 2.40 3.20 16.00 12.50 2.40 125.00 35.0 10.50 2.00 7.5 8.00 SR 16-236 T-15/5 PL 16 GEHIR/L 16SC-14-3 2.40 3.20 16.00 14.00 2.60 140.00 40.0 11.00 2.00 7.5 8.00 SR 16-236 T-15/5 PL 16 GEHIR/L 16SC-16-3 2.40 3.20 16.00 16.00 3.00 160.00 70.0 11.00 2.00 7.5 8.00 SR M5-04451 T-20/5 PL 16 • For user guide, see pages 419-428, 432-436 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Coolant inlet diameter For inserts, see pages: GEMI (341) • GEMI (full radius) (341) • GEPI (342) • GEPI (full radius) (342) • GEPI-MT (648) • GEPI-WT (642) OAL GEHIUR/L CDX LHBoring Bars with Coolant Holes45° HF for Undercutting and Turning DMIN OAL WF DCONMS WF CWX Right-hand shown Designation CWX(1) DCONMS DMIN CDX(2) OAL LH WF HF CND(3) GEHIUR/L 12U 3.20 12.00 14.00 2.00 125.00 20.0 8.70 6.0 6.00 SR 16-236 P T-15/5 GEHIUR/L 16U 3.20 16.00 16.00 2.00 125.00 32.0 9.70 7.5 8.00 SR M5-04451 T-20/5 PL 16 • For profiling use GEPI (full radius) inserts only, for undercutting use GEPI - UN/UR/UL (1) Maximum cutting width (2) Cutting depth maximum (3) Coolant inlet diameter For inserts, see pages: GEPI (full radius) (342) • GEPI-UN/UR/UL (343) f1 OAL HF GHAIR/L-GE Bars with Coolant Holes LH for Internal Grooving and Turning Adapters DMIN DMIN WF DCONMS CDX LF (assembly) Right-hand shown • LF(assembly)=OAL(holder)-f1+LF( adapter). For LF(adapter) dimension,see GEAIR/L adapters Designation DCONMS LH OAL WF HF f1 Adapter GHAIR/L 16-20 16.00 - 150.00 11.50 7.5 2.4 GEAIR/L 20.. SR 76-2057 T-8/5 PL 16 GHAIR/L 20-20 20.00 20.0 150.00 13.50 9.0 2.4 GEAIR/L 20.. SR 76-2057 T-8/5 PL 20 GHAIR/L 25-20 25.00 25.0 200.00 16.00 11.5 2.4 GEAIR/L 20.. SR 76-2057 T-8/5 PL 25 GHAIR/L 32-20 32.00 32.0 200.00 19.50 14.5 2.4 GEAIR/L 20.. SR 76-2057 T-8/5 PL 32 GHAIR/L 20-25 20.00 - 150.00 14.50 9.0 2.4 GEAIR/L 25.. SR 16-236 P T-15/5 PL 20 GHAIR/L 25-25 25.00 25.0 200.00 17.00 11.5 2.4 GEAIR/L 25.. SR 16-236 P T-15/5 PL 25 GHAIR/L 32-25 32.00 32.0 200.00 20.50 14.5 2.4 GEAIR/L 25.. SR 16-236 P T-15/5 PL 32 • For DMIN & CDX refer to GEAIR/L adapters For tools, see pages: GEAIR/L (340) 339
