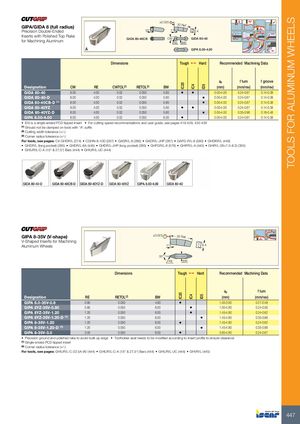

TOOLS FOR ALUMINUM WHEELS
±0.025
30 Ref.
GIPA/GIDA 8 (full radius)
Precision Double-Ended 10° 7° 6.4
Inserts with Polished Top Rake
GIDA 80-40CB CW GIDA 80-40
for Machining Aluminum RE BW
GIPA 8.00-4.00
Dimensions Tough 1 Hard Recommended Machining Data
ap f turn f groove
IC20
IC4
ID5
Designation CW RE CWTOL(2) RETOL(3) BW (mm) (mm/rev) (mm/rev)
GIDA 80-40 8.00 4.00 0.02 0.050 5.60 • • 0.00-4.00 0.24-0.67 0.14-0.38
GIDA 80-40-D 8.00 4.00 0.02 0.050 5.60 • 0.00-4.00 0.24-0.67 0.14-0.38
GIDA 80-40CB-D (1) 8.00 4.00 0.02 0.050 5.60 • 0.00-4.00 0.24-0.67 0.14-0.38
GIDA 80-40YZ 8.00 4.00 0.02 0.050 5.60 • • 0.00-4.00 0.24-0.67 0.14-0.38
GIDA 80-40YZ-D 8.00 4.00 0.02 0.050 5.60 • 0.00-4.00 0.35-0.96 0.18-0.48
GIPA 8.00-4.00 8.00 4.00 0.02 0.050 6.00 • 0.00-4.00 0.24-0.67 0.14-0.38
• ID5 is a single-ended PCD tipped insert • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Should not be clamped on tools with "A" suffix
(2) Cutting width tolerance (+/-)
(3) Corner radius tolerance (+/-)
For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDKR/L (446)
• GHDR/L (long pocket) (285) • GHDR/L-8A (445) • GHDR/L-JHP (long pocket) (285) • GHFGR/L-8 (579) • GHIFR/L-A (445) • GHIR/L (W=7.0-8.3) (355)
• GHIUR/L-C-A (15° & 27.5°) Bars (444) • GHIUR/L-UC (444)
±0.025
GIPA 8-35V (V-shape) 30 Ref.
V-Shaped Inserts for Machining
Aluminum Wheels 7° 6.4
35°
RE BW
Dimensions Tough 1 Hard Recommended Machining Data
ap f turn
IC20
IC4
ID5
Designation RE RETOL(2) BW (mm) (mm/rev)
GIPA 6.0-35V-0.8 0.80 0.050 4.80 • 1.00-3.60 0.21-0.48
GIPA 8YZ-35V-0.80 0.80 0.050 6.00 • 1.00-4.80 0.24-0.56
GIPA 8YZ-35V-1.20 1.20 0.050 6.00 • 1.45-4.80 0.24-0.62
GIPA 8YZ-35V-1.20-D (1) 1.20 0.050 6.00 • 1.45-4.80 0.35-0.88
GIPA 8-35V-1.20 1.20 0.050 6.00 • 1.45-4.80 0.24-0.62
GIPA 8-35V-1.20-D (1) 1.20 0.050 6.00 • 1.45-4.80 0.35-0.88
GIPA 8-35V-3.0 3.00 0.050 6.00 • 3.60-4.80 0.24-0.67
• Precision ground and polished rake to avoid built-up edge • Toolholder seat needs to be modified according to insert profile to ensure clearance
(1) Single-ended PCD tipped insert
(2) Corner radius tolerance (+/-)
For tools, see pages: GHIUR/L-C-22.5A-8V (444) • GHIUR/L-C-A (15° & 27.5°) Bars (444) • GHIUR/L-UC (444) • GHVR/L (445)
447
