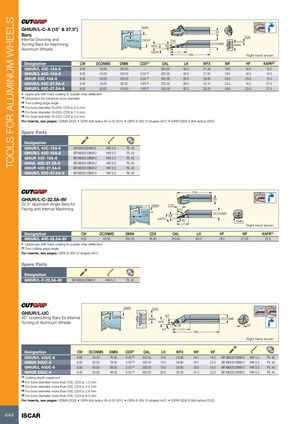

Каталог Iscar обработка канавок 2022 - страница 190
Навигация
Каталог Iscar монолитные концевые фрезы и система multi-master
Фрезерные инструменты Iscar 2026
Каталог Iscar сверла ружейные и для глубокого сверления 2022
Каталог Iscar токарные державки ISO 2022
Каталог Iscar инструмент для обработки алюминиевых колёс
| GHIUR/L-C-A (15° & 27.5 Bars Internal Grooving and Turning Bars for Machining Aluminum Wheels | °) | KAPR | min DAXX DMIN | KAPR WFX WF | OAL LH CW | D | CO H | DMI NMS F | N CDX Righ | t-hand shown | |
| Designation | CW | DCONMS | DMIN | CDX(1) | OAL | LH | WFX | WF | HF | KAPR(2) | |
| GHIUR/L 40C-15A-6 | 6.00 | 40.00 | 160.00 | - | 320.00 | 83.0 | 21.20 | 19.0 | 18.0 | 15.0 | |
| GHIUR/L 40C-15A-8 | 8.00 | 40.00 | 160.00 | 0.00(3) | 320.00 | 83.0 | 21.00 | 18.0 | 18.0 | 15.0 | |
| GHIUR 50C-15A-8 | 8.00 | 50.00 | 100.00 | 0.00(4) | 350.00 | 83.0 | 26.00 | 23.0 | 23.0 | 15.0 | |
| GHIUR/L 40C-27.5A-6 | 6.00 | 40.00 | 90.00 | 0.60(5) | 320.00 | 80.0 | 25.10 | 23.5 | 18.0 | 27.5 | |
| GHIUR/L 50C-27.5A-8 | 8.00 | 50.00 | 120.00 | 1.80(5) | 350.00 | 82.0 | 30.20 | 28.0 | 23.0 | 27.5 |
- Upper jaw with hard coating to sustain chip deflection
(1) Dimension for minimum bore diameter (2) Tool cutting edge angle (3) For bore diameter D>200, CDX is 0.5 mm (4) For bore diameter D>200, CDX is 1.4 mm (5) For bore diameter D>200, CDX is 4.0 mm
For inserts, see pages: GDMA (300) GIPA (full radius W=3-6) (301) GIPA 8-35V (V-shape) (447) GIPA/GIDA 8 (full radius) (302)
Spare Parts
| Designation | |||
| GHIUR/L 40C-15A-6 | SR M5X20DIN912 | HW 4.0 | PL 40 |
| GHIUR/L 40C-15A-8 | SR M6X20 DIN912 | HW 5.0 | PL 40 |
| GHIUR 50C-15A-8 | SR M6X25 DIN912 | HW 5.0 | PL 40 |
| GHIUL 40C-27.5A-6 | SR M6X25 DIN912 | HW 5.0 | PL 40 |
| GHIUR 40C-27.5A-6 | SR M6X20 DIN912 | HW 5.0 | PL 40 |
| GHIUR/L 50C-27.5A-8 | SR M6X25 DIN912 | HW 5.0 | PL 40 |
GHIUR/L-C-22.5A-8V
22.5° Approach Angle Bars for
Facing and Internal Machining
| Designation | CW | DCONMS |
| GHIUR/L 40C-22.5A-8V | 8.00 | 40.00 |
- Upper jaw with hard coating to sustain chip deflection
(1) Tool cutting edge angle
For inserts, see pages: GIPA 8-35V (V-shape) (447)
Spare Parts
Designation
GHIUR/L-C-22.5A-8V SR M6X20 DIN912 HW 5.0
DMIN
300.00
PL 40
OAL HF DMIN CDX 50° KAPR min CDX DCONMS WF KAPR 95° DMIN LH Right-hand shown
| CDX | OAL | LH | HF | WF | KAPR(1) |
| 28.50 | 250.00 | 60.0 | 18.0 | 21.00 | 22.5 |
| GHIUR/L-UC 45° Undercutting Bars for Internal Turning of Aluminum Wheels | KAPR | min DMIN | CD DMIN | 45˚ WF WFX X | LH CW | OAL | DCONMS | H | F | |||
| R | ight-hand | shown | ||||||||||
| Designation CW | DCONMS | DMIN | CDX(1) | OAL | LH | WFX | WF | HF | ||||
| GHIUR/L 40UC-6 6.00 | 40.00 | 70.00 | 0.00(2) | 350.00 | 75.0 | 23.80 | 24.7 | 18.0 | SR M6X20 D | IN912 | HW 5.0 | PL 40 |
| GHIUR 50UC-6 6.00 | 50.00 | 78.00 | 0.00(3) | 350.00 | 75.0 | 28.80 | 29.7 | 23.0 | SR M6X20 D | IN912 | HW 5.0 | PL 40 |
| GHIUR/L 40UC-8 8.00 | 40.00 | 68.00 | 0.00(4) | 350.00 | 79.0 | 28.80 | 26.0 | 18.0 | SR M6X20 D | IN912 | HW 5.0 | PL 40 |
| GHIUR 50UC-8 8.00 | 50.00 | 58.00 | 0.00(5) | 350.00 | 80.0 | 30.20 | 31.4 | 23.0 | SR M6X20 D | IN912 | HW 5.0 | PL 40 |
(1) Cutting depth maximum (2) For bore diameter more than 200, CDX is 1.3 mm (3) For bore diameter more than 200, CDX is 2.0 mm (4) For bore diameter more than 200, CDX is 2.8 mm (5) For bore diameter more than 200, CDX is 6.0 mm
For inserts, see pages: GDMA (300) GIPA (full radius W=3-6) (301) GIPA 8-35V (V-shape) (447) GIPA/GIDA 8 (full radius) (302)
