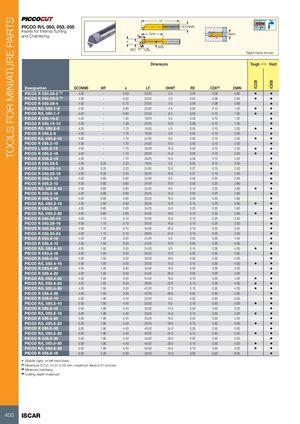

PICCO R/L 050, 053, 055 DCONMS
Inserts for Internal Turning
and Chamfering 8° OHN DMIN
a CDX
WF 20° RE
Right-hand shown
Dimensions Tough 1 Hard
| Designation | DCONMS | WF | a | LF | OHN(2) | RE | CDX(3) | DMIN | ||
| PICCO R 050.06-2 (1) | 4.00 | - | 0.50 | 20.00 | 2.0 | 0.04 | 0.08 | 0.60 | ||
| PICCO R 050.06-3 (1) | 4.00 | - | 0.50 | 20.00 | 3.0 | 0.04 | 0.08 | 0.60 | ||
| PICCO R 050.08-4 | 4.00 | - | 0.70 | 20.00 | 4.0 | 0.04 | 0.08 | 0.80 | ||
| PICCO R/L 050.1-5 | 4.00 | - | 0.90 | 20.00 | 4.5 | 0.05 | 0.10 | 1.00 | ||
| PICCO R/L 050.1-7 | 4.00 | - | 0.90 | 22.00 | 6.5 | 0.05 | 0.10 | 1.00 | ||
| PICCO R 050.15-5 | 4.00 | - | 1.30 | 19.00 | 5.0 | 0.05 | 0.10 | 1.50 | ||
| PICCO R 050.15-10 | 4.00 | - | 1.30 | 24.00 | 10.0 | 0.06 | 0.10 | 1.50 | ||
| PICCO R/L 050.2-5 | 4.00 | - | 1.70 | 19.00 | 4.0 | 0.05 | 0.10 | 2.00 | ||
| PICCO R 055.2-5 | 4.00 | - | 1.70 | 19.00 | 5.0 | 0.05 | 0.10 | 2.00 | ||
| PICCO R/L 050.2-10 | 4.00 | - | 1.70 | 24.00 | 9.0 | 0.05 | 0.10 | 2.00 | ||
| PICCO R 055.2-10 | 4.00 | - | 1.70 | 24.00 | 10.0 | 0.05 | 0.10 | 2.00 | ||
| PICCO L 050.2-15 | 4.00 | - | 1.70 | 29.00 | 15.0 | 0.05 | 0.10 | 2.00 | ||
| PICCO R 050.2-15 | 4.00 | - | 1.70 | 29.00 | 14.0 | 0.05 | 0.10 | 2.00 | ||
| PICCO R 055.2-15 | 4.00 | - | 1.70 | 29.00 | 15.0 | 0.05 | 0.10 | 2.00 | ||
| PICCO R 050.25-5 | 4.00 | 0.20 | 2.20 | 19.00 | 5.0 | 0.05 | 0.15 | 2.50 | ||
| PICCO R 050.25-10 | 4.00 | 0.20 | 2.20 | 24.00 | 10.0 | 0.07 | 0.15 | 2.50 | ||
| PICCO R 050.25-16 | 4.00 | 0.20 | 2.20 | 30.00 | 16.0 | 0.07 | 0.15 | 2.50 | ||
| PICCO R 053.3-10 | 4.00 | 0.60 | 2.60 | 24.00 | 9.0 | 0.03 | 0.20 | 2.80 | ||
| PICCO R 055.3-10 | 4.00 | 0.60 | 2.60 | 24.00 | 10.0 | 0.05 | 0.20 | 2.80 | ||
| PICCO R/L 050.3-10 | 4.00 | 0.60 | 2.60 | 24.00 | 9.0 | 0.10 | 0.20 | 2.80 | ||
| PICCO R 053.3-16 | 4.00 | 0.60 | 2.60 | 30.00 | 15.0 | 0.03 | 0.20 | 2.80 | ||
| PICCO R 055.3-16 | 4.00 | 0.60 | 2.60 | 30.00 | 16.0 | 0.05 | 0.20 | 2.80 | ||
| PICCO R/L 050.3-16 | 4.00 | 0.60 | 2.60 | 30.00 | 15.0 | 0.10 | 0.20 | 2.80 | ||
| PICCO R 053.3-20 | 4.00 | 0.60 | 2.60 | 34.00 | 19.0 | 0.03 | 0.20 | 2.80 | ||
| PICCO R/L 050.3-20 | 4.00 | 0.60 | 2.60 | 34.00 | 19.0 | 0.10 | 0.20 | 2.80 | ||
| PICCO R 050.35-10 | 4.00 | 1.10 | 3.10 | 24.00 | 10.0 | 0.10 | 0.25 | 3.50 | ||
| PICCO R 050.35-16 | 4.00 | 1.10 | 3.10 | 30.00 | 16.0 | 0.10 | 0.25 | 3.50 | ||
| PICCO R 050.35-20 | 4.00 | 1.10 | 3.10 | 34.00 | 20.0 | 0.10 | 0.25 | 3.50 | ||
| PICCO R 050.35-24 | 4.00 | 1.10 | 3.10 | 38.00 | 24.0 | 0.10 | 0.25 | 3.50 | ||
| PICCO R 053.4-10 | 4.00 | 1.50 | 3.50 | 24.00 | 9.0 | 0.03 | 0.30 | 4.00 | ||
| PICCO R 055.4-10 | 4.00 | 1.50 | 3.50 | 24.00 | 10.0 | 0.05 | 0.30 | 4.00 | ||
| PICCO R/L 050.4-10 | 4.00 | 1.50 | 3.50 | 24.00 | 9.0 | 0.10 | 0.30 | 4.00 | ||
| PICCO R 053.4-16 | 4.00 | 1.50 | 3.50 | 30.00 | 15.0 | 0.03 | 0.30 | 4.00 | ||
| PICCO R 055.4-16 | 4.00 | 1.50 | 3.50 | 30.00 | 16.0 | 0.05 | 0.30 | 4.00 | ||
| PICCO R/L 050.4-16 | 4.00 | 1.50 | 3.50 | 30.00 | 15.0 | 0.10 | 0.30 | 4.00 | ||
| PICCO R 053.4-20 | 4.00 | 1.50 | 3.50 | 34.00 | 19.0 | 0.03 | 0.30 | 4.00 | ||
| PICCO R 055.4-20 | 4.00 | 1.50 | 3.50 | 34.00 | 20.0 | 0.05 | 0.30 | 4.00 | ||
| PICCO R/L 050.4-20 | 4.00 | 1.50 | 3.50 | 34.00 | 19.0 | 0.10 | 0.30 | 4.00 | ||
| PICCO R/L 050.4-24 | 4.00 | 1.50 | 3.50 | 38.00 | 23.0 | 0.10 | 0.30 | 4.00 | ||
| PICCO R/L 050.4-28 | 4.00 | 1.50 | 3.50 | 42.00 | 27.0 | 0.10 | 0.30 | 4.00 | ||
| PICCO R 055.4-28 | 4.00 | 1.50 | 3.50 | 42.00 | 28.0 | 0.05 | 0.50 | 4.00 | ||
| PICCO R 055.5-10 | 5.00 | 1.90 | 4.40 | 25.00 | 9.0 | 0.05 | 0.50 | 5.00 | ||
| PICCO R/L 050.5-10 | 5.00 | 1.90 | 4.40 | 25.00 | 9.0 | 0.15 | 0.50 | 5.00 | ||
| PICCO R 055.5-15 | 5.00 | 1.90 | 4.40 | 30.00 | 14.0 | 0.05 | 0.50 | 5.00 | ||
| PICCO R/L 050.5-15 | 5.00 | 1.90 | 4.40 | 30.00 | 14.0 | 0.15 | 0.50 | 5.00 | ||
| PICCO R 055.5-20 | 5.00 | 1.90 | 4.40 | 35.00 | 19.0 | 0.05 | 0.50 | 5.00 | ||
| PICCO R/L 050.5-20 | 5.00 | 1.90 | 4.40 | 35.00 | 19.0 | 0.15 | 0.50 | 5.00 | ||
| PICCO R 055.5-25 | 5.00 | 1.90 | 4.40 | 40.00 | 24.0 | 0.05 | 0.50 | 5.00 | ||
| PICCO R/L 050.5-25 | 5.00 | 1.90 | 4.40 | 40.00 | 24.0 | 0.15 | 0.50 | 5.00 | ||
| PICCO R 055.5-30 | 5.00 | 1.90 | 4.40 | 45.00 | 29.0 | 0.05 | 0.50 | 5.00 | ||
| PICCO R/L 050.5-30 | 5.00 | 1.90 | 4.40 | 45.00 | 29.0 | 0.15 | 0.50 | 5.00 | ||
| PICCO R/L 050.5-35 | 5.00 | 1.90 | 4.40 | 50.00 | 34.0 | 0.15 | 0.50 | 5.00 | ||
| PICCO R 055.6-15 | 6.00 | 2.30 | 5.30 | 30.00 | 14.0 | 0.05 | 0.50 | 6.00 |
- Specify right- or left-hand bars
(1) Maximum D.O.C.=0.01-0.03 mm, maximum feed=0.01 mm/rev. (2) Minimum overhang (3) Cutting depth maximum
