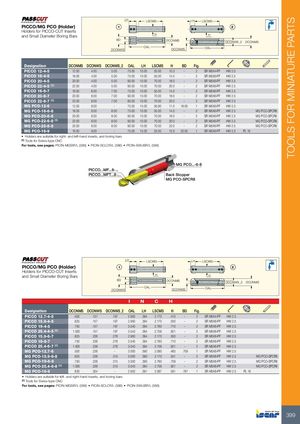

LH LSCMS LH LSCMS
PICCO/MG PCO (Holder) 1 2
Holders for PICCO-CUT Inserts
and Small Diameter Boring Bars H H
BD DCONMS DCONWS_2 DCONMS OAL OAL DCONWS DCONWS
| Designation | DCONMS DCONWS DCONWS_2 OAL | LH | LSCMS | H | BD | Fig. | ||||||
| PICCO 12-4-5 | 12.00 | 4.00 | 5.00 | 75.00 | 10.00 | 55.00 | 10.3 | - | 2 | SR M5X4-PF | HW 2.5 | |
| PICCO 16-4-5 | 16.00 | 4.00 | 5.00 | 75.00 | 10.00 | 55.00 | 14.0 | - | 2 | SR M5X6-PF | HW 2.5 | |
| PICCO 20-4-5 | 20.00 | 4.00 | 5.00 | 90.00 | 10.00 | 70.00 | 18.0 | - | 2 | SR M5X6-PF | HW 2.5 | |
| PICCO 22-4-5 (1) | 22.00 | 4.00 | 5.00 | 90.00 | 10.00 | 70.00 | 20.0 | - | 2 | SR M5X6-PF | HW 2.5 | |
| PICCO 16-6-7 | 16.00 | 6.00 | 7.00 | 75.00 | 10.00 | 55.00 | 14.0 | - | 2 | SR M5X6-PF | HW 2.5 | |
| PICCO 20-6-7 | 20.00 | 6.00 | 7.00 | 90.00 | 10.00 | 70.00 | 18.0 | - | 2 | SR M5X6-PF | HW 2.5 | |
| PICCO 22-6-7 (1) | 22.00 | 6.00 | 7.00 | 90.00 | 10.00 | 70.00 | 20.0 | - | 2 | SR M5X6-PF | HW 2.5 | |
| MG PCO-12-6 | 12.00 | 6.00 | - | 75.00 | 15.00 | 50.80 | 11.0 | 18.00 | 1 | SR M5X6-PF | HW 2.5 | |
| MG PCO-16-6-8 | 16.00 | 6.00 | 8.00 | 75.00 | 10.00 | 55.00 | 14.0 | - | 2 | SR M5X6-PF | HW 2.5 | MG PCO-SPCR8 |
| MG PCO-20-6-8 | 20.00 | 6.00 | 8.00 | 90.00 | 10.00 | 70.00 | 18.0 | - | 2 | SR M5X6-PF | HW 2.5 | MG PCO-SPCR8 |
| MG PCO-22-6-8 (1) | 22.00 | 6.00 | 8.00 | 90.00 | 10.00 | 70.00 | 20.0 | - | 2 | SR M5X6-PF | HW 2.5 | MG PCO-SPCR8 |
| MG PCO-25-6-8 | 25.00 | 6.00 | 8.00 | 90.00 | 10.00 | 70.00 | 23.0 | - | 2 | SR M5X6-PF | HW 2.5 | MG PCO-SPCR8 |
| MG PCO-16-9 | 16.00 | 9.00 | - | 75.00 | 15.00 | 53.00 | 15.0 | 20.00 | 1 | SR M5X6-PF | HW 2.5 | PL 16 |
- Holders are suitable for right- and left-hand inserts, and boring bars
(1) Tools for Swiss-type CNC
For tools, see pages: PICIN-MGSIR/L (386) PICIN-SCLCR/L (386) PICIN-SWUBR/L (386)
MG PCO...-6-8 PICCO...MF...8-... PICCO...MFT...8-... Back Stopper MG PCO-SPCR8
LH LSCMS LH LSCMS
PICCO/MG PCO (Holder) 1 2
Holders for PICCO-CUT Inserts
and Small Diameter Boring Bars H H
BD DCONMS DCONWS_2 DCONMS OAL OAL DCONWS DCONWS
| I | N | C | H | |||||||||
| Designation | DCONMS DCONWS DCONWS_2 OAL | LH | LSCMS | H | BD | Fig. | ||||||
| PICCO 12.7-4-5 | .500 | .157 | .197 | 2.950 | .394 | 2.170 | .410 | - | 2 | SR M5X4-PF | HW 2.5 | |
| PICCO 15.9-4-5 | .625 | .157 | .197 | 2.950 | .394 | 2.170 | .550 | - | 2 | SR M5X6-PF | HW 2.5 | |
| PICCO 19-4-5 | .750 | .157 | .197 | 3.540 | .394 | 2.760 | .710 | - | 2 | SR M5X6-PF | HW 2.5 | |
| PICCO 25.4-4-5 (1) | 1.000 | .157 | .197 | 3.543 | .394 | 2.756 | .921 | - | 2 | SR M5X6-PF | HW 2.5 | |
| PICCO 15.9-6-7 | .625 | .236 | .276 | 2.950 | .394 | 2.170 | .550 | - | 2 | SR M5X6-PF | HW 2.5 | |
| PICCO 19-6-7 | .750 | .236 | .276 | 3.540 | .394 | 2.760 | .710 | - | 2 | SR M5X6-PF | HW 2.5 | |
| PICCO 25.4-6-7 (1) | 1.000 | .236 | .276 | 3.543 | .394 | 2.756 | .921 | - | 2 | SR M5X6-PF | HW 2.5 | |
| MG PCO-12.7-6 | .500 | .236 | - | 3.000 | .590 | 2.090 | .460 | .709 | 1 | SR M5X6-PF | HW 2.5 | |
| MG PCO-15.9-6-8 | .625 | .236 | .315 | 3.000 | .390 | 2.170 | .551 | - | 2 | SR M5X6-PF | HW 2.5 | MG PCO-SPCR8 |
| MG PCO-19-6-8 | .750 | .236 | .315 | 3.500 | .390 | 2.760 | .709 | - | 2 | SR M5X6-PF | HW 2.5 | MG PCO-SPCR8 |
| MG PCO-25.4-6-8 (1) | 1.000 | .236 | .315 | 3.543 | .394 | 2.756 | .921 | - | 2 | SR M5X6-PF | HW 2.5 | MG PCO-SPCR8 |
| MG PCO-16-9 | .630 | .354 | - | 2.953 | .591 | 2.087 | .591 | .787 | 1 | SR M5X6-PF | HW 2.5 | PL 16 |
- Holders are suitable for left- and right-hand inserts, and boring bars
(1) Tools for Swiss-type CNC
For tools, see pages: PICIN-MGSIR/L (386) PICIN-SCLCR/L (386) PICIN-SWUBR/L (386)
