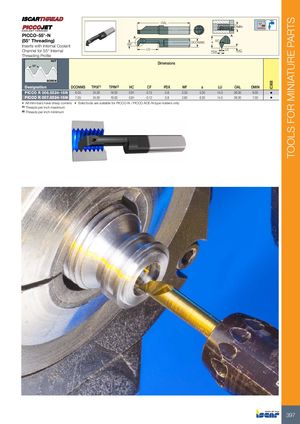

Каталог Iscar обработка канавок 2022 - страница 143

TOOLS FOR MINIATURE PARTS
OAL
DMIN
PICCO-55°-N A
A
(55° Threading) DCONMS a 55˚
WF
Inserts with Internal Coolant
LU CF
Channel for 55° Internal PDX HC
Threading Profile
NUT
Dimensions
55°


SCREW


IC908
Designation DCONMS TPIX(1) TPIN(2) HC CF PDX WF a LU OAL DMIN
PICCO R 006.5524-15N 6.05 24.00 16.00 0.81 0.12 0.8 2.30 5.30 14.0 36.00 6.00 •
PICCO R 007.5524-15N 7.05 24.00 16.00 0.81 0.12 0.8 2.80 6.30 14.0 36.00 7.00 •
• All mini-bars have sharp corners • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Threads per inch maximum
(2) Threads per inch minimum
