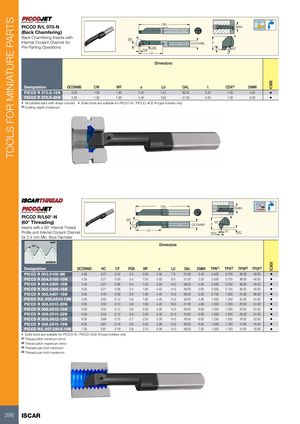

(Back Chamfering)
Back Chamfering Inserts with A A
WF Internal Coolant Channel for a DCONMS
Pre-Parting Operations CDX 8˚
CW 45˚ LU t
Dimensions
| Designation | DCONMS | CW | WF | a | LU | OAL | t | CDX(1) | DMIN | ||
| PICCO R 070.5-15N | 5.05 | 1.00 | 1.90 | 4.40 | 14.0 | 36.00 | 0.20 | 1.00 | 5.00 | ||
| PICCO R 070.5-20N | 5.05 | 1.00 | 1.90 | 4.40 | 19.0 | 41.00 | 0.20 | 1.00 | 5.00 |
- All carbide bars with sharp corners
- Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
PICCO R/L 60°-N
A (60° Threading) WF
Inserts with a 60° Internal Thread
Profile and Internal Coolant Channel
for 2.4 mm Min. Bore Diameter
NUT 60°
LU
OAL
Dimensions
DMIN A DCONMS a 60˚ CF PDX HC
SCREW
| Designation | DCONMS | HC | CF | PDX | WF | a | LU | OAL | DMIN | TPN(1) | TPX(2) | TPIN(3) | TPIX(4) | |
| PICCO R 003.0105-8N | 4.05 | 0.27 | 0.04 | 0.3 | 0.30 | 2.30 | 7.0 | 31.00 | 2.40 | 0.500 | 0.700 | 36.00 | 48.00 | |
| PICCO R 004.0105-10N | 4.05 | 0.27 | 0.09 | 0.4 | 1.00 | 3.00 | 9.0 | 31.00 | 3.20 | 0.500 | 0.750 | 36.00 | 48.00 | |
| PICCO R 004.0205-15N | 4.05 | 0.27 | 0.06 | 0.4 | 1.50 | 3.50 | 14.0 | 36.00 | 4.00 | 0.500 | 0.750 | 36.00 | 48.00 | |
| PICCO R 005.0205-15N | 5.05 | 0.27 | 0.06 | 0.4 | 1.90 | 4.40 | 14.0 | 36.00 | 5.00 | 0.500 | 0.750 | 36.00 | 48.00 | |
| PICCO R 005.0407-15N | 5.05 | 0.40 | 0.09 | 0.5 | 1.90 | 4.40 | 14.0 | 36.00 | 5.00 | 0.750 | 1.000 | 24.00 | 36.00 | |
| PICCO R/L 005.0510-15N | 5.05 | 0.55 | 0.12 | 0.6 | 1.90 | 4.40 | 14.0 | 36.00 | 4.80 | 1.000 | 1.250 | 20.00 | 24.00 | |
| PICCO R 005.0510-20N | 5.05 | 0.55 | 0.12 | 0.6 | 1.90 | 4.40 | 19.0 | 41.00 | 4.80 | 1.000 | 1.250 | 20.00 | 24.00 | |
| PICCO R 006.0510-15N | 6.05 | 0.55 | 0.12 | 0.6 | 2.30 | 5.30 | 14.0 | 36.00 | 6.00 | 1.000 | 1.250 | 20.00 | 24.00 | |
| PICCO R 006.0510-22N | 6.05 | 0.55 | 0.12 | 0.6 | 2.30 | 5.30 | 21.0 | 43.00 | 6.00 | 1.000 | 1.250 | 20.00 | 24.00 | |
| PICCO R 006.0612-15N | 6.05 | 0.68 | 0.15 | 0.7 | 2.30 | 5.30 | 14.0 | 36.00 | 6.00 | 1.250 | 1.500 | 16.00 | 20.00 | |
| PICCO R 006.0815-15N | 6.05 | 0.81 | 0.18 | 0.8 | 2.30 | 5.30 | 14.0 | 36.00 | 6.00 | 1.500 | 1.750 | 14.00 | 16.00 | |
| PICCO R/L 007.0815-15N | 7.05 | 0.81 | 0.18 | 0.8 | 2.70 | 6.30 | 14.0 | 36.00 | 7.00 | 1.500 | 1.750 | 14.00 | 16.00 |
- Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Thread pitch minimum (mm) (2) Thread pitch maximum (mm) (3) Threads per inch minimum (4) Threads per inch maximum
