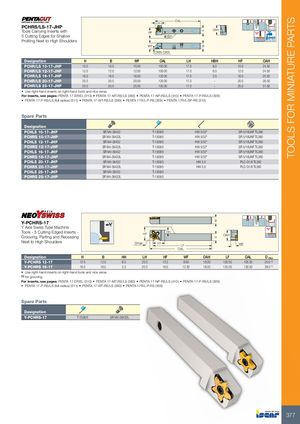

| PCHRS/LS-17-JHP Tools Carrying Inserts with | OAL LH HF | H OAH | |||||
| 5 Cutting Edges for Shallow Profiling Next to High Shoulders | HBH WF CWN-CWX | B | Bar Max | ||||
| Designation | H | B | WF | OAL LH | HBH | HF | OAH |
| PCHR/LS 10-17-JHP | 10.0 | 10.0 | 10.00 | 100.00 17.0 | 8.0 | 10.0 | 24.50 |
| PCHR/LS 12-17-JHP | 12.0 | 12.0 | 12.00 | 100.00 17.0 | 6.0 | 12.0 | 24.50 |
| PCHR/LS 16-17-JHP | 16.0 | 16.0 | 16.00 | 120.00 17.0 | 3.0 | 16.0 | 25.50 |
| PCHR/LS 20-17-JHP | 20.0 | 20.0 | 20.00 | 120.00 17.0 | - | 20.0 | 26.50 |
| PCHR/LS 25-17-JHP | 25.0 | 25.0 | 25.00 | 120.00 17.0 | - | 25.0 | 31.50 |
- Use right-hand inserts on right-hand tools and vice versa
For inserts, see pages: PENTA 17-ER/EL (310) PENTA 17-MT-RS/LS (383) PENTA 17-NP-RS/LS (310) PENTA 17-P-RS/LS (309)
- PENTA 17-P-RS/LS (full radius) (311)
- PENTA 17-WT-RS/LS (383)
- PENTA 17R/L-P-RS (309)
- PENTA 17R/L-SP-RS (310)
Spare Parts
| Designation | ||||
| PCHLS 10-17-JHP | SR M4-39432 | T-1508/5 | HW 5/32" | SR 5/16UNF TL360 |
| PCHRS 10-17-JHP | SR M4-39432L | T-1508/5 | HW 5/32" | SR 5/16UNF TL360 |
| PCHLS 12-17-JHP | SR M4-39432 | T-1508/5 | HW 5/32" | SR 5/16UNF TL360 |
| PCHRS 12-17-JHP | SR M4-39432L | T-1508/5 | HW 5/32" | SR 5/16UNF TL360 |
| PCHLS 16-17-JHP | SR M4-39432 | T-1508/5 | HW 5/32" | SR 5/16UNF TL360 |
| PCHRS 16-17-JHP | SR M4-39432L | T-1508/5 | HW 5/32" | SR 5/16UNF TL360 |
| PCHLS 20-17-JHP | SR M4-39432 | T-1508/5 | HW 5.0 | PLG G1/8 TL360 |
| PCHRS 20-17-JHP | SR M4-39432L | T-1508/5 | HW 5.0 | PLG G1/8 TL360 |
| PCHLS 25-17-JHP | SR M4-39432 | T-1508/5 | ||
| PCHRS 25-17-JHP | SR M4-39432L | T-1508/5 |
| Y-PCHRS-17 Y Axis Swiss Type Machine Tools - 5 Cutting Edged Inserts - Grooving, Parting and Recessing Next to High Shoulders | Dmax HF | LH HH | LF OAL | B H | OAH | WF | |||||
| Designation | H | B | HH | LH | HF | WF | OAH | LF | OAL | Dmax | |
| Y-PCHRS 12-17 | 12.0 | 12.0 | 6.0 | 20.0 | 12.0 | 8.60 | 18.00 | 100.00 | 105.50 | 25.0(1) | |
| Y-PCHRS 16-17 | 16.0 | 16.0 | 2.0 | 20.0 | 16.0 | 12.30 | 18.00 | 125.00 | 130.50 | 38.0(1) |
- Use right-hand inserts on right-hand tools and vice versa
(1) for grooving
For inserts, see pages: PENTA 17-ER/EL (310) PENTA 17-MT-RS/LS (383) PENTA 17-NP-RS/LS (310) PENTA 17-P-RS/LS (309)
- PENTA 17-P-RS/LS (full radius) (311)
- PENTA 17-WT-RS/LS (383)
- PENTA 17R/L-P-RS (309)
| Spare Parts | ||
| Designation | ||
| Y-PCHRS-17 | T-1508/5 | SR M4-39432L |
