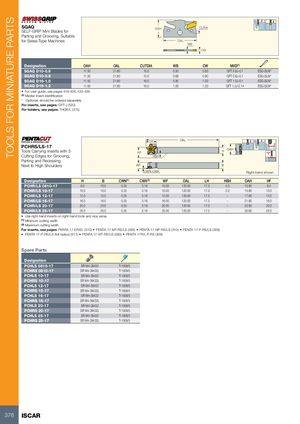

TOOLS FOR MINIATURE PARTS SGAQ OAH CUTIA SELF-GRIP Mini Blades for Parting and Grooving, Suitable for Swiss-Type Machines OAL WB CW Designation OAH OAL CUTDIA WB CW MIID(1) SGAQ D10-0.6 11.50 21.80 10.0 0.50 0.60 GFT 0.6J-0.1 ESG-SLM* SGAQ D10-0.8 11.50 21.80 10.0 0.68 0.80 GFT 0.8J-0.1 ESG-SLM* SGAQ D16-1.0 11.50 21.80 16.0 0.85 1.00 GFT 1.0J-0.1 ESG-SLM* SGAQ D16-1.2 11.50 21.80 16.0 1.00 1.20 GFT 1.2J-0.14 ESG-SLM* • For user guide, see pages 419-428, 432-436 (1) Master insert identification * Optional, should be ordered separately For inserts, see pages: GFT-J (520) For holders, see pages: THQR/L (375) LH OAL PCHRS/LS-17 Tools Carrying Inserts with 5 HF H OAH Cutting Edges for Grooving, HBH Parting and Recessing Next to High Shoulders WF B CWN-CWX Right-hand shown Designation H B CWN(1) CWX(2) WF OAL LH HBH OAH HF PCHR/LS 0810-17 8.0 10.0 0.25 3.18 10.00 120.00 17.0 4.0 13.60 8.0 PCHR/LS 10-17 10.0 10.0 0.25 3.18 10.00 120.00 17.0 2.0 15.60 10.0 PCHR/LS 12-17 12.0 12.0 0.25 3.18 12.00 120.00 17.0 - 17.60 12.0 PCHR/LS 16-17 16.0 16.0 0.25 3.18 16.00 120.00 17.0 - 21.60 16.0 PCHR/LS 20-17 20.0 20.0 0.25 3.18 20.00 120.00 17.0 - 25.60 20.0 PCHR/LS 25-17 25.0 25.0 0.25 3.18 25.00 120.00 17.0 - 30.60 25.0 • Use right-hand inserts on right-hand tools and vice versa (1) Minimum cutting width (2) Maximum cutting width For inserts, see pages: PENTA 17-ER/EL (310) • PENTA 17-MT-RS/LS (383) • PENTA 17-NP-RS/LS (310) • PENTA 17-P-RS/LS (309) • PENTA 17-P-RS/LS (full radius) (311) • PENTA 17-WT-RS/LS (383) • PENTA 17R/L-P-RS (309) Spare Parts Designation PCHLS 0810-17 SR M4-39432 T-1508/5 PCHRS 0810-17 SR M4-39432L T-1508/5 PCHLS 10-17 SR M4-39432 T-1508/5 PCHRS 10-17 SR M4-39432L T-1508/5 PCHLS 12-17 SR M4-39432 T-1508/5 PCHRS 12-17 SR M4-39432L T-1508/5 PCHLS 16-17 SR M4-39432 T-1508/5 PCHRS 16-17 SR M4-39432L T-1508/5 PCHLS 20-17 SR M4-39432 T-1508/5 PCHRS 20-17 SR M4-39432L T-1508/5 PCHLS 25-17 SR M4-39432 T-1508/5 PCHRS 25-17 SR M4-39432L T-1508/5 376 ISCAR
