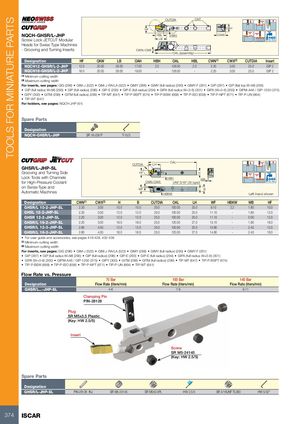

| HF CUTDIA | CNT | OAH | ||||||
| NQCH-GHSR/L-JHP | HBL HBH | OAW | ||||||
| Screw Lock JETCUT Modular | LB | Bar Max | ||||||
| Heads for Swiss Type Machines - Grooving and Turning Inserts | OAL (ass CWN-CWX | embly) | ||||||
| Designation | HF | OAW | LB | OAH HBH OAL | HBL CWN( | 1) CWX(2) | CUT | DIA Insert |
| NQCH12-GHSR/L-2-JHP | 12.0 | 20.00 | 26.00 | 17.00 2.0 126.00 | 2.0 2.20 | 3.00 | 25. | 0 GIP 2 |
| NQCH16-GHSR/L-2-JHP | 16.0 | 20.00 | 26.00 | 19.00 - 126.00 | - 2.20 | 3.00 | 25. | 0 GIP 2 |
(1) Minimum cutting width (2) Maximum cutting width
For inserts, see pages: GIG (296) GIM-J (522) GIM-J-RA/LA (522) GIMY (288) GIMY (full radius) (290) GIMY-F (291) GIP (297) GIP (flat top W<M) (295)
- GIP (full radius W<M) (295)
- GIP (full radius) (296)
- GIP-E (293)
- GIP-E (full radius) (294)
- GIPA (full radius W=3-6) (301)
- GIPA (W=3-6) (300)
- GIPM-A46 / GIP-1250 (375)
- GIPY (300)
- GITM (299)
- GITM (full radius) (299)
- TIP-MT (647)
- TIP-P-BSPT (674)
- TIP-P-BSW (668)
- TIP-P-ISO (658)
- TIP-P-NPT (671)
- TIP-P-UN (664)
- TIP-WT (641)
For holders, see pages: NQCH-JHP (61)
Spare Parts
Designation
NQCH-GHSR/L-JHP SR 16-236 P T-15/3
| GHSR/L-JHP-SL | CUTDIA | LH | OAL | |||||||
| Grooving and Turning Side Lock Tools with Channels for High-Pressure Coolant on Swiss-Type and Automatic Machines | HF C WF | H WN-CWX | HBH BKW UNF 5/16” | W H -24 typx3 | B B | Left | -hand shown Bar Max | |||
| Designation | CWN(1) | CWX(2) | H | B | CUTDIA | OAL | LH | WF | HBKW WB | HF |
| GHSR/L 10-2-JHP-SL | 2.20 | 3.00 | 10.0 | 10.0 | 20.0 | 100.00 | 25.0 | 9.10 | 2.2 1.80 | 10.0 |
| GHSL 12-2-JHP-SL | 2.20 | 3.00 | 12.0 | 12.0 | 25.0 | 100.00 | 25.0 | 11.10 | - 1.80 | 12.0 |
| GHSR 12-2-JHP-SL | 2.20 | 3.00 | 12.0 | 12.0 | 25.0 | 100.00 | 25.0 | 11.10 | - 0.00 | 12.0 |
| GHSR/L 16-2-JHP-SL | 2.20 | 3.00 | 16.0 | 16.0 | 25.0 | 120.00 | 27.0 | 15.10 | - 1.80 | 16.0 |
| GHSR/L 12-3-JHP-SL | 2.80 | 4.00 | 12.0 | 12.0 | 25.0 | 100.00 | 25.0 | 10.80 | - 2.40 | 12.0 |
| GHSR/L 16-3-JHP-SL | 2.80 | 4.00 | 16.0 | 16.0 | 25.0 | 120.00 | 27.0 | 14.80 | - 2.40 | 16.0 |
- For user guide and accessories, see pages 419-428, 432-436
(1) Minimum cutting width (2) Maximum cutting width
For inserts, see pages: GIG (296) GIM-J (522) GIM-J-RA/LA (522) GIMY (288) GIMY (full radius) (290) GIMY-F (291)
- GIP (297)
- GIP (full radius W<M) (295)
- GIP (full radius) (296)
- GIP-E (293)
- GIP-E (full radius) (294)
- GIPA (full radius W=3-6) (301)
- GIPA (W=3-6) (300)
- GIPM-A46 / GIP-1250 (375)
- GIPY (300)
- GITM (299)
- GITM (full radius) (299)
- TIP-MT (647)
- TIP-P-BSPT (674)
- TIP-P-BSW (668)
- TIP-P-ISO (658)
- TIP-P-NPT (671)
- TIP-P-UN (664)
- TIP-WT (641)
Flow Rate vs. Pressure
70 Bar 100 Bar 140 Bar
Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min)
GHSR/L...-JHP-SL 4-6 7-9 9-11
Clamping Pin PIN-28128 Plug SR M5x3.5 Plastic
(Key: HW 2.5/5)
Insert
Screw SR M5-24145 (Key: HW 2.5/5)
Spare Parts
GHSR/L-JHP-SL PIN-28128 INJ SR M5-24145 SR M5X3.5PL HW 2.5/5 SR 5/16UNF TL360 HW 5/32"
