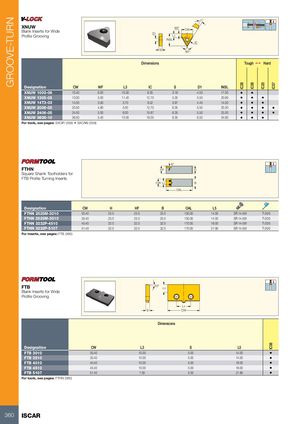

Каталог Iscar обработка канавок 2022 - страница 106

GROOVE-TURN IC28 IC08 IC20 IC07IC08 7° XNUWBlank Inserts for Wide WF CWD1 Profile Grooving L3 INSL IC S 60° Dimensions Tough 1  Hard Designation CW WF L3 IC S D1 INSL XNUW 1003-06 10.40 6.00 10.50 6.35 3.18 4.53 17.00 • • XNUW 1305-05 13.00 5.00 11.40 12.70 5.35 5.50 20.60 • • • XNUW 14T3-03 14.50 3.00 3.70 9.52 3.97 4.40 14.00 • • • XNUW 2006-05 20.50 4.80 5.00 12.70 6.35 5.50 20.30 • • • • XNUW 2406-05 24.50 5.00 6.00 15.87 6.35 5.50 25.00 • • • • XNUW 3606-10 36.50 5.40 10.00 19.05 6.35 6.50 34.60 • • • For tools, see pages: SXCIR (359) • SXCNN (359) 6° FTHN HF H Square Shank Toolholders for FTB Profile Turning Inserts CW L5 B OAL Designation CW H HF B OAL L5 FTHN 2525M-3010 30.40 25.0 25.0 25.0 150.00 14.00 SR 14-591 T-20/5 FTHN 2525M-3510 35.40 25.0 25.0 25.0 150.00 14.00 SR 14-591 T-20/5 FTHN 3232P-4510 45.40 32.0 32.0 32.0 170.00 18.00 SR 14-591 T-20/5 FTHN 3232P-5107 51.40 32.0 32.0 32.0 170.00 21.90 SR 14-591 T-20/5 For inserts, see pages: FTB (360) FTB 10° L3 Blank Inserts for Wide Profile Grooving L5 S CW Dimensions Designation CW L3 S L5 FTB 3010 30.40 10.00 5.00 14.00 • FTB 3510 35.40 10.00 5.00 14.00 • FTB 4010 40.40 10.00 5.00 18.00 • FTB 4510 45.40 10.00 5.00 18.00 • FTB 5107 51.40 7.00 5.00 21.90 • For tools, see pages: FTHN (360) 360 ISCAR
