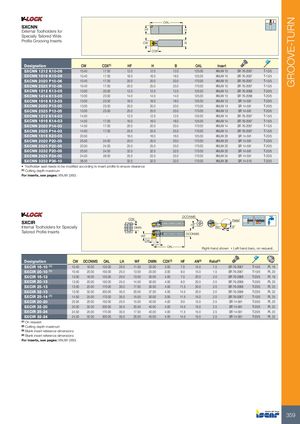

| SXCNN | O | AL | ||||||||
| External Toolholders for | HF | |||||||||
| Specially Tailored Wide Profile Grooving Inserts | CW CDX | B | ||||||||
| Designation | CW | CDX(1) | HF | H | B | OAL | Insert | |||
| SXCNN 1212 K10-06 | 10.40 | 17.00 | 12.0 | 12.0 | 12.0 | 125.00 | XNUW 10 | SR 76-2067 | T-15/5 | |
| SXCNN 1616 K10-06 | 10.40 | 17.00 | 16.0 | 16.0 | 16.0 | 125.00 | XNUW 10 | SR 76-2067 | T-15/5 | |
| SXCNN 2020 P10-06 | 10.40 | 17.00 | 20.0 | 20.0 | 20.0 | 170.00 | XNUW 10 | SR 76-2067 | T-15/5 | |
| SXCNN 2525 P10-06 | 10.40 | 17.00 | 25.0 | 25.0 | 25.0 | 170.00 | XNUW 10 | SR 76-2067 | T-15/5 | |
| SXCNN 1212 K13-05 | 13.00 | 20.00 | 12.0 | 12.0 | 12.0 | 125.00 | XNUW 13 | SR 76-2068 | T-20/5 | |
| SXCNN 1414 K13-05 | 13.00 | 23.00 | 14.0 | 14.0 | 14.0 | 125.00 | XNUW 13 | SR 76-2068 | T-20/5 | |
| SXCNN 1616 K13-05 | 13.00 | 23.00 | 16.0 | 16.0 | 16.0 | 125.00 | XNUW 13 | SR 14-591 | T-20/5 | |
| SXCNN 2020 P13-05 | 13.00 | 23.00 | 20.0 | 20.0 | 20.0 | 170.00 | XNUW 13 | SR 14-591 | T-20/5 | |
| SXCNN 2525 P13-05 | 13.00 | 23.00 | 25.0 | 25.0 | 25.0 | 170.00 | XNUW 13 | SR 14-591 | T-20/5 | |
| SXCNN 1212 K14-03 | 14.50 | - | 12.0 | 12.0 | 12.0 | 125.00 | XNUW 14 | SR 76-2067 | T-15/5 | |
| SXCNN 1616 K14-03 | 14.50 | 17.00 | 16.0 | 16.0 | 16.0 | 125.00 | XNUW 14 | SR 76-2067 | T-15/5 | |
| SXCNN 2020 P14-03 | 14.50 | 17.00 | 20.0 | 20.0 | 20.0 | 170.00 | XNUW 14 | SR 76-2067 | T-15/5 | |
| SXCNN 2525 P14-03 | 14.50 | 17.00 | 25.0 | 25.0 | 25.0 | 170.00 | XNUW 14 | SR 76-2067 | T-15/5 | |
| SXCNN 1616 K20-05 | 20.50 | - | 16.0 | 16.0 | 16.0 | 125.00 | XNUW 20 | SR 14-591 | T-20/5 | |
| SXCNN 2020 P20-05 | 20.50 | 24.00 | 20.0 | 20.0 | 20.0 | 170.00 | XNUW 20 | SR 14-591 | T-20/5 | |
| SXCNN 2525 P20-05 | 20.50 | 24.00 | 25.0 | 25.0 | 25.0 | 170.00 | XNUW 20 | SR 14-591 | T-20/5 | |
| SXCNN 3232 P20-05 | 20.50 | 24.00 | 32.0 | 32.0 | 32.0 | 170.00 | XNUW 20 | SR 14-591 | T-20/5 | |
| SXCNN 2525 P24-05 | 24.50 | 28.00 | 25.0 | 25.0 | 25.0 | 170.00 | XNUW 24 | SR 14-591 | T-20/5 | |
| SXCNN 3232 P36-10 | 36.50 | - | 32.0 | 32.0 | 32.0 | 170.00 | XNUW 36 | SR 14-519 | T-20/5 |
- Toolholder seat needs to be modified according to insert profile to ensure clearance
(1) Cutting depth maximum
For inserts, see pages: XNUW (360)
| SXCIR | CDX | DCO | NMS HF | Relief | |||||||||
| Internal Toolholders for Sp Tailored Profile Inserts | ecially | DMIN W | LH F CW | OAL | D | CONMS Ri | AN° ght-hand s | 8° hown•Left han | d bars, on re | quest. | |||
| Designation | CW | DCONMS | OAL | LH | WF | DMIN | CDX(2) | HF | AN(3) | Relief(4) | |||
| SXCIR 16-10(1) | 10.40 | 16.00 | 125.00 | 20.0 | 11.50 | 25.00 | 3.00 | 7.5 | 15.0 | 1.5 | SR 76-2067 | T-15/5 | PL 16 |
| SXCIR 20-10(1) | 10.40 | 20.00 | 150.00 | 25.0 | 13.00 | 25.00 | 3.00 | 9.0 | 15.0 | 1.5 | SR 76-2067 | T-15/5 | PL 20 |
| SXCIR 16-13 | 13.00 | 16.00 | 125.00 | 20.0 | 13.00 | 30.00 | 4.00 | 7.5 | 20.0 | 2.0 | SR 76-2068 | T-20/5 | PL 16 |
| SXCIR 20-13 | 13.00 | 20.00 | 150.00 | 25.0 | 14.50 | 30.00 | 4.00 | 9.0 | 20.0 | 2.0 | SR 76-2068 | T-20/5 | PL 20 |
| SXCIR 25-13 | 13.00 | 25.00 | 170.00 | 30.0 | 17.00 | 30.50 | 4.00 | 11.5 | 20.0 | 2.0 | SR 76-2068 | T-20/5 | PL 25 |
| SXCIR 32-13 | 13.00 | 32.00 | 200.00 | 35.0 | 20.00 | 37.00 | 4.00 | 14.5 | 20.0 | 2.0 | SR 76-2068 | T-20/5 | PL 32 |
| SXCIR 25-14(1) | 14.50 | 25.00 | 170.00 | 30.0 | 15.50 | 30.00 | 3.00 | 11.5 | 15.0 | 2.0 | SR 76-2067 | T-15/5 | PL 25 |
| SXCIR 20-20 | 20.50 | 20.00 | 150.00 | 25.0 | 15.00 | 40.00 | 4.00 | 9.0 | 15.0 | 2.5 | SR 14-591 | T-20/5 | PL 20 |
| SXCIR 32-20 | 20.50 | 32.00 | 200.00 | 35.0 | 20.50 | 40.00 | 4.00 | 14.5 | 15.0 | 2.5 | SR 14-591 | T-20/5 | PL 32 |
| SXCIR 25-24 | 24.50 | 25.00 | 170.00 | 30.0 | 17.50 | 40.00 | 4.00 | 11.5 | 15.0 | 2.5 | SR 14-591 | T-20/5 | PL 25 |
| SXCIR 32-24 | 24.50 | 32.00 | 200.00 | 35.0 | 20.50 | 40.00 | 4.00 | 14.5 | 15.0 | 2.5 | SR 14-591 | T-20/5 | PL 32 |
(1) On request. (2) Cutting depth maximum (3) Blank insert reference dimensions (4) Blank insert reference dimensions
For inserts, see pages: XNUW (360)
