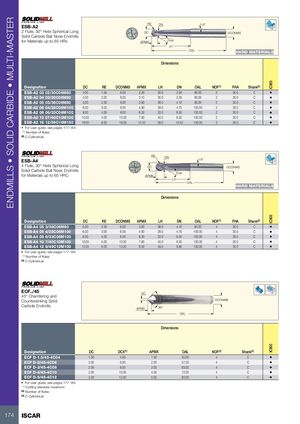

ENDMILLS • SOLID CARBIDE • MULTI-MASTER RE DN 1.6° ESB-A2 2 Flute, 30° Helix Spherical Long DC DCONMS Solid Carbide Ball Nose Endmills for Materials up to 65 HRc APMX FHA LH OAL HARD MATERIALS Dimensions IC903 Designation DC RE DCONMS APMX LH DN OAL NOF(1) FHA Shank(2) ESB-A2 03 02/30C06M80 3.00 1.50 6.00 2.30 30.0 2.50 80.00 2 30.0 C • ESB-A2 04 03/30C06M80 4.00 2.00 6.00 3.10 30.0 3.30 80.00 2 30.0 C • ESB-A2 05 03/38C06M80 5.00 2.50 6.00 3.90 38.0 4.10 80.00 2 30.0 C • ESB-A2 06 04/28C06M100 6.00 3.00 6.00 4.90 28.0 4.70 100.00 2 30.0 C • ESB-A2 08 06/33C08M100 8.00 4.00 8.00 6.30 33.0 6.50 100.00 2 30.0 C • ESB-A2 10 07/40C10M100 10.00 5.00 10.00 7.90 40.0 8.20 100.00 2 30.0 C • ESB-A2 16 12/59C16M150 16.00 8.00 16.00 12.40 59.0 13.40 150.00 2 30.0 C • • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical RE DN 1.6° ESB-A4 4 Flute, 30° Helix Spherical Long DC DCONMS Solid Carbide Ball Nose Endmills FHA for Materials up to 65 HRC APMX LH OAL HARD MATERIALS Dimensions IC903 Designation DC RE DCONMS APMX LH DN OAL NOF(1) FHA Shank(2) ESB-A4 05 3/38C06M80 5.00 2.50 6.00 3.90 38.0 4.10 80.00 4 30.0 C • ESB-A4 06 4/28C06M100 6.00 3.00 6.00 4.90 28.0 4.70 100.00 4 30.0 C • ESB-A4 08 6/33C08M100 8.00 4.00 8.00 6.30 33.0 6.30 100.00 4 30.0 C • ESB-A4 10 7/40C10M100 10.00 5.00 10.00 7.90 40.0 8.20 100.00 4 30.0 C • ESB-A4 12 9/49C12M100 12.00 6.00 12.00 9.50 49.0 9.80 100.00 4 30.0 C • • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical ECF../45 DC 45° Chamfering and Countersinking Solid DCONMS Carbide Endmills 90° APMX OAL Dimensions IC900 Designation DC DCX(1) APMX OAL NOF(2) Shank(3) ECF D-1.5/45-4C04 1.00 4.00 1.50 50.00 4 C • ECF D-2/45-4C06 2.00 6.00 2.00 57.00 4 C • ECF D-3/45-4C08 2.00 8.00 3.00 63.00 4 C • ECF D-4/45-4C10 2.00 10.00 4.00 72.00 4 C • ECF D-5/45-4C12 2.00 12.00 5.00 83.00 4 C • • For user guide, see pages 177-184 (1) Cutting diameter maximum (2) Number of flutes (3) C-Cylindrical 174 ISCAR
