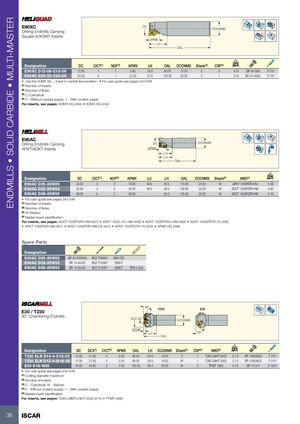

E90XC DC Drilling Endmills Carrying DCONMS Square S/XOMT Inserts Rd° APMX LH OAL
| Designation | DC | CICT(1) | NOF(2) | APMX | LH | OAL | DCONMS | Shank(3) | CSP(4) | kg | ||
| E90XC D12-06-C12-06 | 12.00 | 1 | 1 | 5.80 | 25.0 | 90.00 | 12.00 | C | 0 | 0.07 | SR 34-508 | T-7/51 |
| E90XC D20-22-C20-06 | 20.00 | 5 | 1 | 22.00 | 37.0 | 120.00 | 20.00 | C | 1 | 0.24 | SR 34-508/L | T-7/51 |
- Use the XOMT 06.... insert in central face location
- For user guide see pages 542-548
(1) Number of inserts (2) Number of flutes (3) C-Cylindrical (4) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: SOMT-HQ (494) XOMT-HQ (494)
E90AC
Drilling Endmills Carrying DC APKT/ADKT Inserts APMX
DCONMS LU LH OAL
| Designation | DC | CICT(1) | NOF(2) | APMX | LU | LH | OAL | DCONMS | Shank(3) | MIID(4) | kg |
| E90AC D25-20W25 | 25.00 | 3 | 2 | 19.00 | 49.0 | 50.0 | 110.00 | 25.00 | W | APKT 1003PDR-HM | 0.30 |
| E90AC D32-25W32 | 32.00 | 3 | 2 | 25.00 | 48.0 | 50.0 | 130.00 | 32.00 | W | ADCT 1505PDFR-HM | 0.60 |
| E90AC D38-25W32 | 38.00 | 5 | 2 | 26.00 | - | 50.0 | 130.00 | 32.00 | W | ADCT 1505PDFR-HM | 0.70 |
- For user guide see pages 542-548
(1) Number of inserts (2) Number of flutes (3) W-Weldon (4) Master insert identification
For inserts, see pages: ADCT 1505PDFR-HM (457) ADKT 1505..R/L-HM (459) ADKT 1505PDR/L-HM (458) ADKT 1505PDTR-76 (459)
- APKT 1003PDR-HM (451)
- APKT 1003PDR-HM-CS (451)
- APKT 1003PDTR-76 (452)
- XPMT-HQ (496)
Spare Parts
| Designation | ||||
| E90AC D25-20W25 | SR 34-505/HG | BLD T08/M7 | SW4-SD | |
| E90AC D32-25W32 | SR 14-544/S | BLD T15/M7 | SW6-T | |
| E90AC D38-25W32 | SR 14-544/S | BLD T15/M7 | SW6-T | ZPN 4-520 |
| E30 / T230 30° Chamfering Endmills | DC DCX APMX | 30° LH | T230 OAL | DCONMS | E30 30° | ||||||||
| Designation | DC | DCX(1) | CICT(2) | APMX | OAL | LH | DCONMS | Shank(3) | CSP(4) | MIID(5) | kg | ||
| T230 ELN D12-4-C16-05 | 12.00 | 21.50 | 4 | 2.50 | 90.00 | 20.0 | 16.00 | C | 1 | T290 LNHT 0502 | 0.13 | SR 10503833 | T-7/51 |
| T230 ELN D12-4-W16-05 | 12.00 | 21.50 | 4 | 2.50 | 90.00 | 20.0 | 16.00 | W | 1 | T290 LNHT 0502 | 0.13 | SR 10503833 | T-7/51 |
| E30 D16-W25 | 16.00 | 40.90 | 3 | 7.00 | 100.00 | 36.4 | 25.00 | W | 0 | TPMT 1603 | 0.42 | SR 14-541 | T-15/51 |
- For user guide see pages 542-548
(1) Cutting diameter maximum (2) Number of inserts (3) C - Cylindrical, W - Weldon (5) Master insert identification
For inserts, see pages: T290 LNMT/LNHT 0502 (474) TPMT (468)
