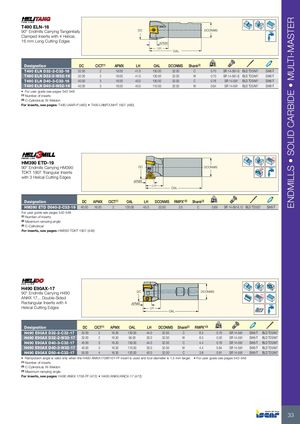

Каталог Iscar концевые фрезы со сменными пластинами 2022 - страница 35
Навигация
Каталог Iscar токарный инструмент
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar высокоточные развертки и метчики 2022
Каталог Iscar крепление инструмента
Каталог Iscar сверла ружейные и для глубокого сверления 2022
| T490 ELN-16 | |||||||||||
| 90° Endmills Carrying Tangentia Clamped Inserts with 4 Helical, 16 mm Long Cutting Edges | lly | DC | APMX LH | OAL | DCONMS | ||||||
| Designation | DC | CICT(1) | APMX | LH | OAL | DCONMS | Shank(2) | kg | |||
| T490 ELN D32-2-C32-16 | 32.00 | 2 | 16.00 | 41.0 | 130.00 | 32.00 | C | 0.70 | SR 14-591-S | BLD T20/M7 | SW6-T |
| T490 ELN D32-2-W32-16 | 32.00 | 2 | 16.00 | 41.0 | 130.00 | 32.00 | W | 0.70 | SR 14-591-S | BLD T20/M7 | SW6-T |
| T490 ELN D40-3-C32-16 | 40.00 | 3 | 16.00 | 40.0 | 130.00 | 32.00 | C | 0.76 | SR 14-591 | BLD T20/M7 | SW6-T |
| T490 ELN D40-3-W32-16 | 40.00 | 3 | 16.00 | 40.0 | 110.00 | 32.00 | W | 0.64 | SR 14-591 | BLD T20/M7 | SW6-T |
- For user guide see pages 542-548
(1) Number of inserts (2) C-Cylindrical, W-Weldon
For inserts, see pages: T490 LNAR-P (480) T490 LNMT/LNHT 1607 (480)
HM390 ETD-19
90° Endmills Carrying HM390
TDKT 1907 Triangular Inserts
with 3 Helical Cutting Edges
| Designation | DC | APMX |
| HM390 ETD D040-2-C32-19 | 40.00 | 16.00 |
For user guide see pages 542-548 (1) Number of inserts (2) Maximum ramping angle (3) C-Cylindrical
For inserts, see pages: HM390 TDKT 1907 (448)
CICT(1)
2
Rd° DC DCONMS
APMX LH OAL
| OAL | LH | DCONMS RMPX°(2) | Shank(3) | kg | ||||
| 130.00 | 45.0 | 32.00 | 2.0 | C | 0.69 | SR 14-591/L12 BLD T20/S7 | SW6-T |
H490 E90AX-17
90° Endmills Carrying H490 DC DCONMS
ANKX 17... Double-Sided Rd° Rectangular Inserts with 4 APMX Helical Cutting Edges LH OAL
| Designation | DC | CICT(1) | APMX | OAL | LH | DCONMS | Shank(2) | RMPX°(3) | kg | |||
| H490 E90AX D32-2-C32-17 | 32.00 | 2 | 16.30 | 130.00 | 44.0 | 32.00 | C | 6.5 | 0.70 | SR 14-591 | SW6-T | BLD T20/M7 |
| H490 E90AX D32-2-W32-17 | 32.00 | 2 | 16.30 | 95.00 | 30.0 | 32.00 | W | 6.5 | 0.50 | SR 14-591 | SW6-T | BLD T20/M7 |
| H490 E90AX D40-3-C32-17 | 40.00 | 3 | 16.30 | 130.00 | 44.0 | 32.00 | C | 4.4 | 0.76 | SR 14-591 | SW6-T | BLD T20/M7 |
| H490 E90AX D40-3-W32-17 | 40.00 | 3 | 16.30 | 110.00 | 35.0 | 32.00 | W | 4.4 | 0.64 | SR 14-591 | SW6-T | BLD T20/M7 |
| H490 E90AX D50-4-C32-17 | 50.00 | 4 | 16.30 | 120.00 | 40.0 | 32.00 | C | 3.8 | 0.81 | SR 14-591 | SW6-T | BLD T20/M7 |
- Rampdown angle is valid only when the H490 ANKX1706R15T-FF insert is used and tool diameter is 1.5 mm larger.
- For user guide see pages 542-548
(1) Number of inserts (2) C-Cylindrical, W-Weldon (3) Maximum ramping angle
For inserts, see pages: H490 ANKX 1706-FF (472) H490 ANKX/ANCX-17 (472)
