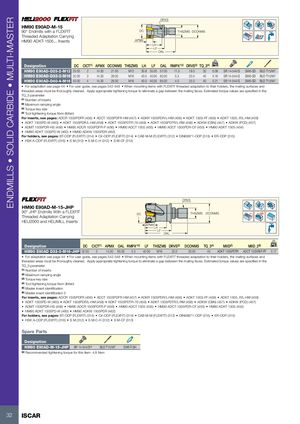

| HM90 E90AD-M-15 90° Endmills with a FLEXFIT Threaded Adaptation Carrying HM90 ADKT-1505... Inserts | D APM | C X | LH LF OAL THSZ DRVS | DCO MS | NMS | Rd° | ||||||
| Designation DC | CICT( | 1) APMX | DCONMS | THSZMS | LH | LF OAL RMPX°(2) | DRVS(3) | TQ3(4 | ) kg | |||
| HM90 E90AD-D25-2-M12 25.00 | 2 | 14.30 | 21.00 | M12 | 30.8 | 35.00 57.00 11.5 | 19.0 | 33 | 0.08 | SR 14-544/S | SW6-SD | BLD T15/M7 |
| HM90 E90AD-D32-3-M16 32.00 | 3 | 14.30 | 29.00 | M16 | 40.0 | 40.00 65.00 5.3 | 25.0 | 40 | 0.16 | SR 14-544/S | SW6-SD | BLD T15/M7 |
| HM90 E90AD-D40-4-M16 40.00 | 4 | 14.30 | 29.00 | M16 | 40.0 | 40.00 65.00 4.0 | 25.0 | 40 | 0.21 | SR 14-544/S | SW6-SD | BLD T15/M7 |
- For adaptation see page 44
- For user guide, see pages 542-548
- When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Number of inserts (2) Maximum ramping angle (3) Torque key size (4) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: ADCR 1505PDFR (456) ADCT 1505PDFR-HM (457) ADKR 1505PDR/L-HM (456) ADKT 1505-FF (459) ADKT 1505..R/L-HM (459)
- ADKT 1505PD-W (460)
- ADKT 1505PDR/L-HM (458)
- ADKT 1505PDTR-76 (459)
- ADKT 1505PDTR/L-RM (458)
- ADKW (CBN) (457)
- ADKW (PCD) (457)
- ADMT 1505PDR-HS (458)
- HM90 ADCR 1505PDFR-P (456)
- HM90 ADCT 1505 (455)
- HM90 ADCT 1505PDR-CF (455)
- HM90 ADKT 1505 (454)
- HM90 ADKT 1505PD-W (460)
- HM90 ADKW 1505PDR (462)
For holders, see pages: BT-ODP (FLEXFIT) (314) C#-ODP (FLEXFIT) (314) CAB M-M (FLEXFIT) (312) DIN69871-ODP (315) ER-ODP (315)
- HSK A-ODP (FLEXFIT) (316)
- S M (312)
- S M-C-H (312)
- S M-CF (313)
DRVS
HM90 E90AD-M-15-JHP
90° JHP Endmills With a FLEXFIT
DC THSZMS DCONMS Rd°
Threaded Adaptation Carrying HELI2000 and HELIMILL Inserts APMX LH
LF OAL
| Designation | DC CICT(1) | APMX OAL RMPX°(2) | LF THSZMS DRVS(3) | DCONMS TQ_3(4) | MIID(5) | MIID_2(6) | kg | ||||||||
| HM90 E90AD D32-3-M16-JHP | 32.00 | 3 | 14.30 | 65.00 | 5.3 | 40.00 | M16 | 25.0 | 30.50 | 40 | ADKT 1505PDTR | ADCT 1505R8T-FF | 0.17 |
- For adaptation see page 44
- For user guide, see pages 542-548
- When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Number of inserts (2) Maximum ramping angle (3) Torque key size (4) Tool tightening torque Nxm (lbfxin) (5) Master insert identification (6) Master insert identification 2
For inserts, see pages: ADCR 1505PDFR (456) ADCT 1505PDFR-HM (457) ADKR 1505PDR/L-HM (456) ADKT 1505-FF (459) ADKT 1505..R/L-HM (459)
- ADKT 1505PD-W (460)
- ADKT 1505PDR/L-HM (458)
- ADKT 1505PDTR-76 (459)
- ADKT 1505PDTR/L-RM (458)
- ADKW (CBN) (457)
- ADKW (PCD) (457)
- ADMT 1505PDR-HS (458)
- HM90 ADCR 1505PDFR-P (456)
- HM90 ADCT 1505 (455)
- HM90 ADCT 1505PDR-CF (455)
- HM90 ADKT 1505 (454)
- HM90 ADKT 1505PD-W (460)
- HM90 ADKW 1505PDR (462)
For holders, see pages: BT-ODP (FLEXFIT) (314) C#-ODP (FLEXFIT) (314) CAB M-M (FLEXFIT) (312) DIN69871-ODP (315) ER-ODP (315)
- HSK A-ODP (FLEXFIT) (316)
- S M (312)
- S M-C-H (312)
- S M-CF (313)
Spare Parts
Designation
HM90 E90AD-M-15-JHP SR 14-544/S(a) BLD T15/M7 SW6-T-SH
(a) Recommended tightening torque for this item: 4.8 Nxm
