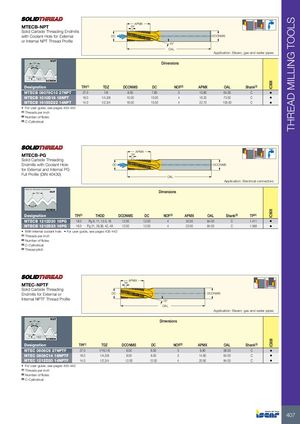

Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 91

THREAD MILLING TOOLS
APMX
MTECB-NPT TP
Solid Carbide Threading Endmills
with Coolant Hole for External DC DCONMS
or Internal NPT Thread Profile
15°
OAL
Application: Steam, gas and water pipes
NUT
TP Dimensions
30˚ 30˚


90˚ Taper 1:16
SCREW


IC908
Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3)
MTECB 08076C10 27NPT 27.0 1/8 8.00 7.60 3 10.80 64.00 C •
MTECB 1010D16 18NPT 18.0 1/4,3/8 10.00 10.00 4 16.20 73.00 C •
MTECB 16155D22 14NPT 14.0 1/2,3/4 16.00 15.50 4 22.70 105.00 C •
• For user guide, see pages 435-442
(1) Threads per inch
(2) Number of flutes
(3) C-Cylindrical


APMX
MTECB-PG TP
Solid Carbide Threading
Endmills with Coolant Hole DC DCONMS
for External and Internal PG
Full Profile (DIN 40430) OAL
Application: Electrical connectors
Used for electrical connectors
TP
NUT Dimensions

80˚
SCREW


IC908
Designation TPI(1) THOD DCONMS DC NOF(2) APMX OAL Shank(3) TP(4)
MTECB 1212D20 18PG 18.0 Pg 9, 11, 13.5, 16 12.00 12.00 4 20.50 84.00 C 1.411 •
MTECB 1212D23 16PG 16.0 Pg 21, 29,36, 42, 48 12.00 12.00 4 23.00 84.00 C 1.588 •
• With internal coolant hole • For user guide, see pages 435-442
(1) Threads per inch
(2) Number of flutes
(3) C-Cylindrical
(4) Thread pitch


APMX
TP
MTEC-NPTF
Solid Carbide Threading
Endmills for External or DC DCONMS
Internal NPTF Thread Profile 15°
OAL
Application: Steam, gas and water pipes
NUT
TP Dimensions
30˚ 30˚


90˚ Taper 1:16
SCREW
IC908


Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3)
MTEC 0606C9 27NPTF 27.0 1/16,1/8 6.00 6.00 3 9.90 58.00 C •
MTEC 0808C14 18NPTF 18.0 1/4,3/8 8.00 8.00 3 14.80 64.00 C •
MTEC 1212D20 14NPTF 14.0 1/2,3/4 12.00 12.00 4 20.90 84.00 C •
• For user guide, see pages 435-442
(1) Threads per inch
(2) Number of flutes
(3) C-Cylindrical


407
