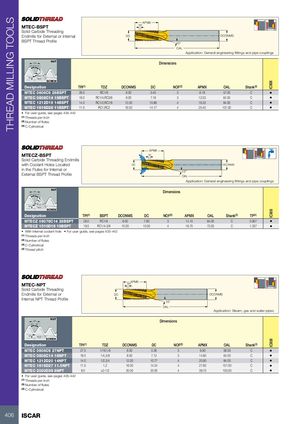

THREAD MILLING TOOLS IC908IC908IC908 APMX MTEC-BSPT TP Solid Carbide Threading Endmills for External or Internal DC DCONMS BSPT Thread Profile 15° OAL Application: General engineering fittings and pipe couplings NUTTP Dimensions 27.5˚ 27.5˚ RE=0.137TP 90˚ Taper 1:16 SCREW Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTEC 0606C9 28BSPT 28.0 RC1/8 6.00 5.40 3 8.16 57.00 C • MTEC 0808C14 19BSPT 19.0 RC1/4,RC3/8 8.00 7.16 3 12.03 64.00 C • MTEC 1212D19 14BSPT 14.0 RC1/2,RC7/8 12.00 10.88 4 16.33 84.00 C • MTEC 1616D28 11BSPT 11.0 RC1,RC2 16.00 14.17 4 25.40 101.00 C • • For user guide, see pages 435-442 (1) Threads per inch (2) Number of flutes (3) C-Cylindrical APMX MTECZ-BSPT TP Solid Carbide Threading Endmills with Coolant Holes Located DC DCONMS in the Flutes for Internal or 15° External BSPT Thread Profile OAL Application: General engineering fittings and pipe couplings NUTTP Dimensions 27.5˚ 27.5˚ RE=0.137TP 90˚ Taper 1:16 SCREW Designation TPI(1) BSPT DCONMS DC NOF(2) APMX OAL Shank(3) TP(4) MTECZ 08078C14 28BSPT 28.0 RC1/8 8.00 7.80 3 14.10 64.00 C 0.907 • MTECZ 1010D16 19BSPT 19.0 RC1/4-3/8 10.00 10.00 4 16.70 73.00 C 1.337 • • With internal coolant hole • For user guide, see pages 435-442 (1) Threads per inch (2) Number of flutes (3) C-Cylindrical (4) Thread pitch APMX MTEC-NPT TP Solid Carbide Threading Endmills for External or DC DCONMS Internal NPT Thread Profile 15° OAL Application: Steam, gas and water pipes NUTTP Dimensions 30˚ 30˚ 90˚ Taper 1:16 SCREW Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTEC 0606C9 27NPT 27.0 1/16,1/8 6.00 5.36 3 9.90 58.00 C • MTEC 0808C14 18NPT 18.0 1/4,3/8 8.00 7.12 3 14.80 64.00 C • MTEC 1212D20 14NPT 14.0 1/2,3/4 12.00 10.77 4 20.90 84.00 C • MTEC 1616D27 11.5NPT 11.5 1,2 16.00 14.24 4 27.60 101.00 C • MTEC 2020D39 8NPT 8.0 ≥2-1/2 20.00 20.00 4 39.70 105.00 C • • For user guide, see pages 435-442 (1) Threads per inch (2) Number of flutes (3) C-Cylindrical 406 ISCAR
