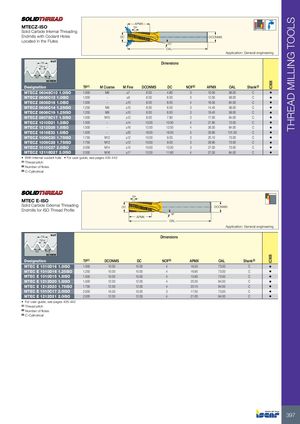

IC908IC908 THREAD MILLING TOOLS APMX MTECZ-ISO TP Solid Carbide Internal Threading Endmills with Coolant Holes DC DCONMS Located in the Flutes 15° OAL Application: General engineering TP NUT Dimensions TP/4 60˚ TP/8 SCREW Designation TP(1) M Coarse M Fine DCONMS DC NOF(2) APMX OAL Shank(3) MTECZ 06048C10 1.0ISO 1.000 M6 ≥7 6.00 4.80 3 10.50 58.00 C • MTECZ 0606C12 1.0ISO 1.000 - ≥9 6.00 6.00 3 12.50 58.00 C • MTECZ 0808D16 1.0ISO 1.000 - ≥10 8.00 8.00 4 16.50 64.00 C • MTECZ 0606C14 1.25ISO 1.250 M8 ≥10 6.00 6.00 3 14.40 58.00 C • MTECZ 0606C19 1.25ISO 1.250 M8 ≥10 6.00 6.00 3 19.40 58.00 C • MTECZ 08078C17 1.5ISO 1.500 M10 ≥12 8.00 7.80 3 17.00 64.00 C • MTECZ 1010D21 1.5ISO 1.500 - ≥14 10.00 10.00 4 21.80 73.00 C • MTECZ 1212D26 1.5ISO 1.500 - ≥16 12.00 12.00 4 26.30 84.00 C • MTECZ 1616E33 1.5ISO 1.500 - ≥20 16.00 16.00 5 33.80 101.00 C • MTECZ 1009C20 1.75ISO 1.750 M12 ≥12 10.00 9.00 3 20.10 73.00 C • MTECZ 1009C28 1.75ISO 1.750 M12 ≥12 10.00 9.00 3 28.90 73.00 C • MTECZ 1010C27 2.0ISO 2.000 M14 ≥15 10.00 10.00 3 27.00 73.00 C • MTECZ 12118D27 2.0ISO 2.000 M16 ≥17 12.00 11.80 4 27.00 84.00 C • • With internal coolant hole • For user guide, see pages 435-442 (1) Thread pitch (2) Number of flutes (3) C-Cylindrical TP MTEC E-ISO Solid Carbide External Threading DC DCONMS Endmills for ISO Thread Profile APMX OAL Application: General engineering TP NUT Dimensions TP/4 60˚ TP/8 SCREW Designation TP(1) DCONMS DC NOF(2) APMX OAL Shank(3) MTEC E 1010D16 1.0ISO 1.000 10.00 10.00 4 16.50 73.00 C • MTEC E 1010D16 1.25ISO 1.250 10.00 10.00 4 16.90 73.00 C • MTEC E 1010D15 1.5ISO 1.500 10.00 10.00 4 15.80 73.00 C • MTEC E 1212D20 1.5ISO 1.500 12.00 12.00 4 20.30 84.00 C • MTEC E 1212D20 1.75ISO 1.750 12.00 12.00 4 20.10 84.00 C • MTEC E 1010C17 2.0ISO 2.000 10.00 10.00 3 17.00 73.00 C • MTEC E 1212D21 2.0ISO 2.000 12.00 12.00 4 21.00 84.00 C • • For user guide, see pages 435-442 (1) Thread pitch (2) Number of flutes (3) C-Cylindrical 397
