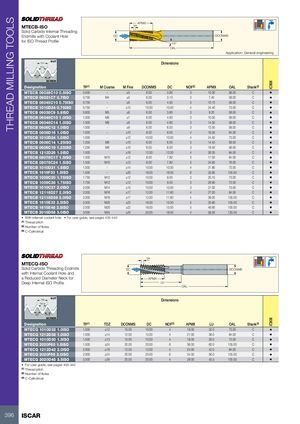

THREAD MILLING TOOLS IC908IC908 APMX MTECB-ISO TP Solid Carbide Internal Threading Endmills with Coolant Hole DC DCONMS for ISO Thread Profile 15° OAL Application: General engineering NUTTP Dimensions TP/4 60˚ TP/8 SCREW Designation TP(1) M Coarse M Fine DCONMS DC NOF(2) APMX OAL Shank(3) MTECB 06038C10 0.5ISO 0.500 - ≥5 6.00 3.80 3 10.30 58.00 C • MTECB 06031C7 0.7ISO 0.700 M4 ≥5 6.00 3.10 3 7.40 58.00 C • MTECB 06045C10 0.75ISO 0.750 - ≥6 6.00 4.50 3 10.10 58.00 C • MTECB 1010D24 0.75ISO 0.750 - ≥12 10.00 10.00 4 24.40 73.00 C • MTECB 06038C9 0.8ISO 0.800 M5 ≥6 6.00 3.80 3 9.20 58.00 C • MTECB 06046C10 1.0ISO 1.000 M6 ≥7 6.00 4.60 3 10.50 58.00 C • MTECB 06046C14 1.0ISO 1.000 M6 ≥6 6.00 4.60 3 14.50 58.00 C • MTECB 0606C12 1.0ISO 1.000 - ≥9 6.00 6.00 3 12.50 58.00 C • MTECB 0808D16 1.0ISO 1.000 - ≥10 8.00 8.00 4 16.50 64.00 C • MTECB 1010D24 1.0ISO 1.000 - ≥12 10.00 10.00 4 24.50 73.00 C • MTECB 0606C14 1.25ISO 1.250 M8 ≥10 6.00 6.00 3 14.40 58.00 C • MTECB 0606C19 1.25ISO 1.250 M8 ≥10 6.00 6.00 3 19.40 58.00 C • MTECB 1212D26 1.5ISO 1.500 ≥16 12.00 12.00 4 26.30 84.00 C • MTECB 08078C17 1.5ISO 1.500 M10 ≥12 8.00 7.80 3 17.00 64.00 C • MTECB 08078C24 1.5ISO 1.500 M10 ≥12 8.00 7.80 3 24.80 76.00 C • MTECB 1010D21 1.5ISO 1.500 - ≥14 10.00 10.00 4 21.80 73.00 C • MTECB 1616F33 1.5ISO 1.500 - ≥20 16.00 16.00 6 33.80 105.00 C • MTECB 1009C20 1.75ISO 1.750 M12 ≥12 10.00 9.00 3 20.10 73.00 C • MTECB 1009C28 1.75ISO 1.750 M12 ≥12 10.00 9.00 3 28.90 73.00 C • MTECB 1010C27 2.0ISO 2.000 M14 ≥15 10.00 10.00 3 27.00 73.00 C • MTECB 12118D27 2.0ISO 2.000 M16 ≥17 12.00 11.80 4 27.00 84.00 C • MTECB 12118D39 2.0ISO 2.000 M16 ≥17 12.00 11.80 4 39.00 105.00 C • MTECB 1615E33 2.5ISO 2.500 M20 ≥22 16.00 15.00 5 33.80 105.00 C • MTECB 1615E48 2.5ISO 2.500 M20 ≥22 16.00 15.00 5 48.80 105.00 C • MTECB 2018D58 3.0ISO 3.000 M24 ≥25 20.00 18.00 4 58.50 120.00 C • • With internal coolant hole • For user guide, see pages 435-442 (1) Thread pitch (2) Number of flutes (3) C-Cylindrical TP MTECQ-ISO Solid Carbide Threading Endmills DC DCONMS with Internal Coolant Hole and a Reduced Diameter Neck for APMX Deep Internal ISO Profile LU OAL TP NUT Dimensions TP/4 60˚ TP/8 SCREW Designation TP(1) TDZ DCONMS DC NOF(2) APMX LU OAL Shank(3) MTECQ 1010D32 1.0ISO 1.000 ≥12 10.00 10.00 4 18.00 32.0 73.00 C • MTECQ 1212D38 1.0ISO 1.000 ≥14 12.00 12.00 4 21.00 38.0 84.00 C • MTECQ 1010D30 1.5ISO 1.500 ≥13 10.00 10.00 4 18.00 30.0 73.00 C • MTECQ 2020F60 1.5ISO 1.500 ≥24 20.00 20.00 6 36.00 60.0 105.00 C • MTECQ 1212D42 2.0ISO 2.000 ≥16 12.00 12.00 4 24.00 42.0 84.00 C • MTECQ 2020F56 2.0ISO 2.000 ≥24 20.00 20.00 6 34.00 56.0 105.00 C • MTECQ 2020D45 3.5ISO 3.500 ≥26 20.00 20.00 4 28.00 45.5 105.00 C • • For user guide, see pages 435-442 (1) Thread pitch (2) Number of flutes (3) C-Cylindrical 396 ISCAR
