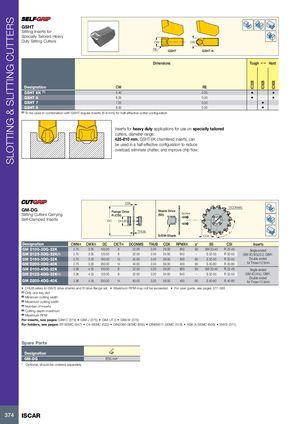

GSHT
Slitting Inserts for
Specially Tailored Heavy
Duty Slitting Cutters
CW CW RE GSHT GSHT-K
| Dimensions | Tough | 1 | Hard | |||
| Designation | CW | RE | IC328 | IC928 | IC908 | |
| GSHT 6K(1) | 5.40 | 0.00 | • | • | ||
| GSHT 6 | 6.35 | 0.50 | • | • | ||
| GSHT 7 | 7.00 | 0.50 | • | |||
| GSHT 8 | 8.00 | 0.50 | • |
(1) To be used in combination with GSHT regular inserts (6-8 mm) for half-effective cutter configuration
Inserts for heavy duty applications for use on specially tailored
cutters, diameter range:
425-810 mm. GSHT-6K chamfered inserts, can
be used in a half-effective configuration to reduce
overload, eliminate chatter, and improve chip flow.
| GM-DG Slitting Cutters Carrying Self-Clamped Inserts | DC | CW DHUB Flange Drive R (CSI) | THUB | Shank Drive (SS) S/SW-Shank | Screw | CDX | DCONM a° | S | |||
| Designation | CWN(2) | CWX(3) | DC | CICT(4) | DCONMS | THUB | CDX | RPMX(5) | a° SS | CSI | Inserts |
| GM D100-3DG-22K | 2.70 | 3.35 | 100.00 | 6 | 22.00 | 2.40 | 29.00 | 800 | 90 SW 32-40 | R 22-46 | Single-ended: |
| GM D125-3DG-32K(1) | 2.70 | 3.35 | 125.00 | 8 | 32.00 | 2.40 | 34.00 | 640 | - S 32-55 | R 32-55 | GIM 3C/3/3J/3.2, GIMY.. |
| GM D160-3DG-32K | 2.70 | 3.35 | 160.00 | 10 | 32.00 | 2.40 | 39.00 | 500 | 90 S 32-55 | R 32-55 | Double ended: |
| GM D200-3DG-40K | 2.70 | 3.35 | 200.00 | 14 | 40.00 | 2.40 | 59.00 | 400 | 90 S 40-80 | R 40-80 | for Tmax=12.5mm |
| GM D100-4DG-22K | 3.36 | 4.35 | 100.00 | 6 | 22.00 | 3.20 | 29.00 | 800 | 90 SW 32-40 | R 22-46 | Single-ended: |
| GM D125-4DG-32K(1) | 3.36 | 4.35 | 125.00 | 8 | 32.00 | 3.20 | 34.00 | 640 | - S 32-55 | R 32-55 | GIM 4C/4/4J, GIMY.. |
| GM D200-4DG-40K | 3.36 | 4.35 | 200.00 | 14 | 40.00 | 3.20 | 59.00 | 400 | 90 S 40-80 | R 40-80 | Double ended: for Tmax=12.5mm |
- DHUB refers to SW/S drive shanks and R drive flange set
- Maximum RPM may not be exceeded
- For user guide, see pages 377-383
(1) Only one key slot (2) Minimum cutting width (3) Maximum cutting width (4) Number of inserts (5) Cutting depth maximum (6) Maximum RPM
For inserts, see pages: GIM-C (375) GIM-J (375) GIM-UT () GIM-W (375)
For holders, see pages: BT-SEMC (647) C#-SEMC (623) DIN2080-SEMC (655) DIN69871-SEMC (578) HSK A-SEMC (605) SW/S (371)
Spare Parts
| Designation | |
| GM-DG | EDG 44A |
* Optional, should be ordered separately
