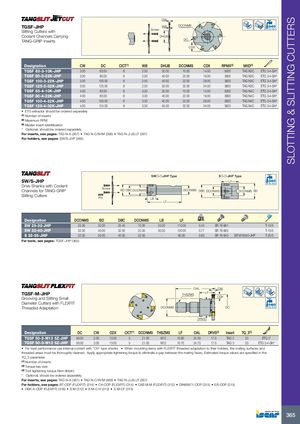

TGSF-JHP WB DCONMS
Slitting Cutters with Screw Bar Max
Coolant Channels Carrying DHUB TANG-GRIP Inserts DC CDX
| Designation | CW | DC | CICT(1) | WB | DHUB | DCONMS | CDX | RPMX(2) | MIID(3) | |
| TGSF 63-3-10K-JHP | 3.00 | 63.00 | 6 | 2.50 | 32.00 | 10.00 | 14.00 | 5000 | TAG N3C | ETG 3-4-SH* |
| TGSF 80-3-22K-JHP | 3.00 | 80.00 | 6 | 2.50 | 40.00 | 22.00 | 19.00 | 3900 | TAG N3C | ETG 3-4-SH* |
| TGSF 100-3-22K-JHP | 3.00 | 100.00 | 6 | 2.50 | 40.00 | 22.00 | 29.00 | 3820 | TAG N3C | ETG 3-4-SH* |
| TGSF 125-3-32K-JHP | 3.00 | 125.00 | 8 | 2.50 | 55.00 | 32.00 | 34.00 | 3820 | TAG N3C | ETG 3-4-SH* |
| TGSF 63-4-10K-JHP | 4.00 | 63.00 | 6 | 3.30 | 32.00 | 10.00 | 14.00 | 5000 | TAG N4C | ETG 3-4-SH* |
| TGSF 80-4-22K-JHP | 4.00 | 80.00 | 6 | 3.30 | 40.00 | 22.00 | 19.00 | 3900 | TAG N4C | ETG 3-4-SH* |
| TGSF 100-4-22K-JHP | 4.00 | 100.00 | 6 | 3.30 | 40.00 | 22.00 | 29.00 | 3820 | TAG N4C | ETG 3-4-SH* |
| TGSF 125-4-32K-JHP | 4.00 | 125.00 | 8 | 3.30 | 55.00 | 32.00 | 34.00 | 3820 | TAG N4C | ETG 3-4-SH* |
- ETG extractor should be ordered separately
(1) Number of inserts (2) Maximum RPM (3) Master insert identification
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (367) TAG N-C/W/M (366) TAG N-J/JS/JT (367)
For holders, see pages: SW/S-JHP (365)
SW--JHP Type S--JHP Type SW/S-JHP LF Drive Shanks with Coolant Bar Max Screw
Channels for TANG-GRIP BD DBCDCONWS DCONMS DBC DCONWS DCONMS BD
Slitting Cutters
Pin LB LF
| Designation | DCONMS | BD | DBC | DCONWS | LB | LF | kg | |||
| SW 25-32-JHP | 25.00 | 32.00 | 25.40 | 10.00 | 25.00 | 110.00 | 0.43 | SR 76-961 | T-15/5 | |
| SW 32-40-JHP | 32.00 | 40.00 | 32.50 | 22.00 | 30.00 | 120.00 | 0.77 | SR 76-963 | T-15/5 | |
| S 32-55-JHP | 32.00 | 55.00 | 45.00 | 32.00 | - | 60.00 | 0.83 | SR 76-943 | SR M16X40-JHP | T-20/5 |
For tools, see pages: TGSF-JHP (365)
OAL CW TGSF-M-JHP LF THSZMS Grooving and Slitting Small CDX
Diameter Cutters with FLEXFIT
Threaded Adaptation DCONMS DC Bar Max
DRVS
| Designation | DC | CW | CDX | CICT(1) | DCONMS THSZMS | LF | OAL | DRVS(2) | Insert | TQ_3(3) | |||
| TGSF 50-2-M12 5Z-JHP | 50.00 | 2.00 | 13.00 | 5 | 21.00 | M12 | 10.80 | 24.00 | 17.0 | TAG 2 | 33 | ETG 2* | |
| TGSF 50-3-M12 5Z-JHP | 50.00 | 3.00 | 13.00 | 5 | 21.00 | M12 | 10.70 | 24.70 | 17.0 | TAG 3 | 33 | ETG 3-4-SH* |
- For best performance use internal coolant with "CH" type shanks
- When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Number of inserts (2) Torque key size (3) Tool tightening torque Nxm (lbfxin)
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (367) TAG N-C/W/M (366) TAG N-J/JS/JT (367)
For holders, see pages: BT-ODP (FLEXFIT) (314) C#-ODP (FLEXFIT) (314) CAB M-M (FLEXFIT) (312) DIN69871-ODP (315) ER-ODP (315)
- HSK A-ODP (FLEXFIT) (316)
- S M (312)
- S M-C-H (312)
- S M-CF (313)
