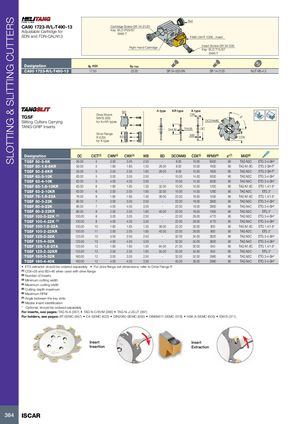

CA90 1723-R/L-T490-13 Cartridge Screw-SR 14-2120 Adjustable Cartridge for Key: BLD IP25/S7 SDN and FDN-CALN13 SW6-T
Right Hand Cartridge
Designation a min a
p p max
CA90 1723-R/L-T490-13 17.50 23.00
Nut
T490 LNHT 1306...Insert Insert Screw-SR 34-535 Key: BLD T15/S7 SW6-T
SR 34-535-SN SR 14-2120 NUT M5-4.5
BD A type KR type K type
TGSF Drive Shank CW
SW/S (SS) a°
Slitting Cutters Carrying for K+KR types DCONMS
TANG-GRIP Inserts
DHUB THUB DC
Drive Flange WB
R (CSI) BD CDX
for K type
| Designation | DC | CICT(2) | CWN(3) | CWX(4) | WB | BD | DCONMS | CDX(5) | RPMX(6) | a°(7) | MIID(8) | |
| TGSF 50-3-8K | 50.00 | 4 | 3.00 | 3.05 | 2.50 | - | 8.00 | 10.00 | 6300 | 90 | TAG N3C | ETG 3-4-SH* |
| TGSF 50-1.6-8KR | 50.00 | 5 | 1.60 | 1.65 | 1.30 | 28.00 | 8.00 | 10.00 | 1600 | 90 | TAG N1.6C | ETG 2-SH-T* |
| TGSF 50-2-8KR | 50.00 | 5 | 2.00 | 2.05 | 1.65 | 28.00 | 8.00 | 10.00 | 1600 | 90 | TAG N2C | ETG 2-SH-T* |
| TGSF 63-3-10K | 63.00 | 5 | 3.00 | 3.05 | 2.50 | - | 10.00 | 14.50 | 5000 | 90 | TAG N3C | ETG 3-4-SH* |
| TGSF 63-4-10K | 63.00 | 5 | 4.00 | 4.05 | 3.30 | - | 10.00 | 14.50 | 5000 | 90 | TAG N4C | ETG 3-4-SH* |
| TGSF 63-1.6-10KR | 63.00 | 6 | 1.60 | 1.65 | 1.30 | 32.00 | 10.00 | 15.00 | 1200 | 90 | TAG N1.6C | ETG 1.4/1.6* |
| TGSF 63-2-10KR | 63.00 | 6 | 2.00 | 2.05 | 1.65 | 32.00 | 10.00 | 14.50 | 1260 | 90 | TAG N2C | ETG 2* |
| TGSF 76-1.6-22A | 76.00 | 8 | 1.60 | 1.65 | 1.30 | 39.00 | 22.00 | 18.00 | 1050 | 90 | TAG N1.6C | ETG 1.4/1.6* |
| TGSF 80-3-22K | 80.00 | 7 | 3.00 | 3.05 | 2.50 | - | 22.00 | 19.00 | 3900 | 90 | TAG N3C | ETG 3-4-SH* |
| TGSF 80-4-22K | 80.00 | 7 | 4.00 | 4.05 | 3.30 | - | 22.00 | 19.00 | 3900 | 90 | TAG N4C | ETG 3-4-SH* |
| TGSF 80-2-22KR | 80.00 | 8 | 2.00 | 2.05 | 1.65 | 40.00 | 22.00 | 19.00 | 1000 | 90 | TAG N2C | ETG 2* |
| TGSF 100-3-22K (1) | 100.00 | 8 | 3.00 | 3.05 | 2.50 | - | 22.00 | 29.00 | 4770 | 90 | TAG N3C | ETG 3-4-SH* |
| TGSF 100-4-22K (1) | 100.00 | 8 | 4.00 | 4.05 | 3.30 | - | 22.00 | 29.00 | 4770 | 90 | TAG N4C | ETG 3-4-SH* |
| TGSF 100-1.6-22A | 100.00 | 10 | 1.60 | 1.65 | 1.30 | 39.00 | 22.00 | 30.00 | 800 | 90 | TAG N1.6C | ETG 1.4/1.6* |
| TGSF 100-2-22KR | 100.00 | 11 | 2.00 | 2.05 | 1.65 | 40.00 | 22.00 | 29.00 | 800 | 90 | TAG N2C | ETG 2* |
| TGSF 125-3-32K | 125.00 | 10 | 3.00 | 3.05 | 2.50 | - | 32.00 | 34.00 | 3820 | 90 | TAG N3C | ETG 3-4-SH* |
| TGSF 125-4-32K | 125.00 | 10 | 4.00 | 4.05 | 3.30 | - | 32.00 | 34.00 | 3820 | 90 | TAG N4C | ETG 3-4-SH* |
| TGSF 125-1.6-27A | 125.00 | 12 | 1.60 | 1.65 | 1.30 | 64.00 | 27.00 | 30.00 | 640 | 90 | TAG N1.6C | ETG 1.4/1.6* |
| TGSF 125-2-32KR | 125.00 | 13 | 2.00 | 2.05 | 1.65 | 55.00 | 32.00 | 34.00 | 640 | 90 | TAG N2C | ETG 2* |
| TGSF 160-3-32K | 160.00 | 12 | 3.00 | 3.05 | 2.50 | - | 32.00 | 52.00 | 2980 | 90 | TAG N3C | ETG 3-4-SH* |
| TGSF 160-4-40K | 160.00 | 12 | 4.00 | 4.05 | 3.30 | - | 40.00 | 39.00 | 2980 | 90 | TAG N4C | ETG 3-4-SH* |
- ETG extractor should be ordered separately
- For drive flange set dimensions, refer to Drive Flange R
(1) CDX=26 and BD=46 when used with drive flange (2) Number of inserts (3) Minimum cutting width (4) Maximum cutting width (5) Cutting depth maximum (6) Maximum RPM (7) Angle between the key slots (8) Master insert identification * Optional, should be ordered separately
For inserts, see pages: TAG N-A (367) TAG N-C/W/M (366) TAG N-J/JS/JT (367)
For holders, see pages: BT-SEMC (647) C#-SEMC (623) DIN2080-SEMC (655) DIN69871-SEMC (578) HSK A-SEMC (605) SW/S (371)
Insert Insert Insertion Extraction
