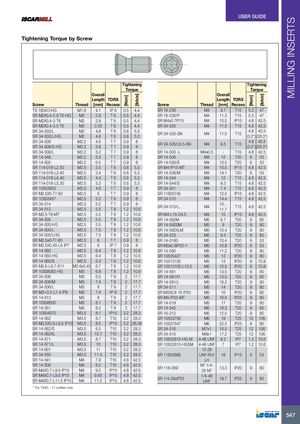

Tightening Torque by Screw
| Overall | Tigh Tor ] | tening que in] | Overall | Tight Tor ] | ening que in] | ||||||
| Length | TORX | xm | fx | Length | TORX | xm | fx | ||||
| Screw | Thread | [mm] | Recess | [N | [lb | Screw | Thread | [mm] | Recess | [N | [lb |
| TS 18041I/HG | M1.8 | 4.1 | IP 6 | 0.5 | 4.4 | SR 16-236 | M4 | 9.7 | T15 | 5.3 | 47 |
| SR M2X0.4-2.9 T6-HG | M2 | 2.9 | T 6 | 0.5 | 4.4 | SR 16-236/P | M4 | 11.3 | T15 | 5.3 | 47 |
| SR M2X0.4-3 T6 | M2 | 2.9 | T 6 | 0.5 | 4.4 | SR M4x0.7IP15 | M4 | 10.5 | IP15 | 4.8 | 42.5 |
| SR M2X0.4-3.5 T6 | M2 | 3.55 | T 6 | 0.5 | 4.4 | SR 34-535 | M4 | 11.5 | T15 | 4.8 | 42,5 |
| SR 34-533/L | M2 | 4.8 | T 6 | 0.6 | 5.3 | SR 34535SN | M4 | 115 | T15 | 4.8 | 42.5 |
| SR 34-533/L/HG | M2 | 4.8 | T 6 | 0.6 | 5.3 | -- | . | (3.2) | (28.3) | ||
| SR 34-508 | M2.2 | 4.6 | T 7 | 0.9 | 8 | SR 34-535/L95-SN | M4 | 95 | T15 | 4.8 | 42.5 |
| SR 34-508/S-HG | M2.2 | 3.8 | T 7 | 0.9 | 8 | . | . | (3.2) | (28.3) | ||
| SR 34-508/L | M2.2 | 5.2 | T 7 | 0.9 | 8 | SR 14-500 -L | M4x0.5 | - | T15 | 4.8 | 42.5 |
| SR 14-548 | M2.2 | 5.3 | T 7 | 0.9 | 8 | SR 14-536 | M4 | 12 | T20 | 6 | 53 |
| SR 14-505 | M2.2 | 6.5 | T 7 | 0.9 | 8 | SR 14-536/S | M4 | 10.5 | T20 | 6 | 53 |
| SR 114-018-L2.50 | M2.5 | 2.5 | T 6 | 0.6 | 5.3 | SR M4-IP15-MT | M4 | 10.5 | IP15 | 4.8 | 42.5 |
| SR 114-018-L3.40 | M2.5 | 3.4 | T 6 | 0.6 | 5.3 | SR 14-536/M | M4 | 14.1 | T20 | 6 | 53 |
| SR 114-018-L4.40 | M2.5 | 4.4 | T 6 | 0.6 | 5.3 | SR 14-544 | M4 | 12 | T15 | 4.8 | 42.5 |
| SR 114-018-L5.30 | M2.5 | 5.3 | T 6 | 0.6 | 5.3 | SR 14-544/S | M4 | 9.3 | T15 | 4.8 | 42.5 |
| SR 10503833 | M2.5 | 4.6 | T 7 | 0.9 | 8 | SR 34-501 | M4 | 7.4 | T15 | 4.8 | 42.5 |
| SR M2.5X5-T7-60 | M2.5 | 5 | T 7 | 0.9 | 8 | SR 11800745 | M4 | 12.5 | IP15 | 4.8 | 42.5 |
| SR 10503457 | M2.5 | 5.2 | T 6 | 0.9 | 8 | SR 34-510 | M4 | 14.4 | T15 | 4.8 | 42.5 |
| SR 34-514 | M2.5 | 5.2 | T 7 | 0.9 | 8 | SR 34510/L | M4 | 10... | T15 | 48 | 425 |
| SR 34-513 | M2.5 | 5.5 | T 8 | 1.2 | 10.6 | -… | 11.7 | . | . | ||
| SR M2.5-T8-MT | M2.5 | 5.5 | T 8 | 1.2 | 10.6 | SR M4-L15-D4.5 | M4 | 15 | IP15 | 4.8 | 42.5 |
| SR 34-505 | M2.5 | 5.5 | T 8 | 1.2 | 10.6 | SR 14-592M | M5 | 8.7 | T20 | 9 | 80 |
| SR 34-505/HG | M2.5 | 5.5 | T 8 | 1.2 | 10.6 | SR 14-592SM | M5 | 9 | T20 | 9 | 80 |
| SR 34-505/L | M2.5 | 7.5 | T 8 | 1.2 | 10.6 | SR 14-592XLM | M5 | 10.4 | T20 | 9 | 80 |
| SR 34-505/LHG | M2.5 | 7.5 | T 8 | 1.2 | 10.6 | SR 34-523 | M5 | 9.5 | T20 | 9 | 80 |
| SR M2.5x6-T7-60 | M2.5 | 6 | T 7 | 0.9 | 8 | SR 14-0180 | M5 | 10.4 | T20 | 6 | 53 |
| SR M25X045-L6 IP7 | M25 | 6 | IP 7 | 09 | 8 | SR M5x08IP20-1 | M5 | 108 | IP20 | 6 | 53 |
| .. SR 14-560 | . M2.5 | 6.4 | T 8 | . 1.2 | 10.6 | . SR 14-590 | M5 | . 11.2 | T20 | 9 | 80 |
| SR 14-560-HG | M2.5 | 6.4 | T 8 | 1.2 | 10.6 | SR 10505427 | M5 | 12 | IP20 | 9 | 80 |
| SR 14-560/S | M2.5 | 5.3 | T 8 | 1.2 | 10.6 | SR 10513105 | M5 | 13 | IP20 | 8 | 70.8 |
| SR M2.6-L6.7-S11 | M2.6x0.45 | 6.7 | T 8 | 1.2 | 10.6 | SR 10513105-L10.5 | M5 | 10.5 | IP20 | 8 | 70.8 |
| SR 10508082-HG | M3 | 6.8 | T 8 | 1.2 | 10.6 | SR 14-591 | M5 | 13.5 | T20 | 9 | 80 |
| SR 34-506 | M3 | 6.5 | T 9 | 2 | 17.7 | SR 14-591/H | M5 | 13.5 | T20 | 9 | 80 |
| SR 34-506/M | M3 | 7.4 | T 9 | 2 | 17.7 | SR 14-591/L | M5 | 16.2 | T20 | 9 | 80 |
| SR 34-506/L | M3 | 8 | T 9 | 2 | 17.7 | SR 34-511 | M5 | 14 | T20 | 9 | 80 |
| SR M3×0.5-L7.4 IP9 | M3 | 7.4 | IP 9 | 2 | 17.7 | SR M5X0.8 16 IP20 | M5 | 16 | IP20 | 9 | 80 |
| SR 14-513 | M3 | 8 | T 9 | 2 | 17.7 | SR M5-IP25-MT | M5 | 16.5 | IP25 | 9 | 80 |
| SR 10508600 | M3 | 8.1 | T 9 | 2 | 17.7 | SR 14-519 | M5 | 17 | T20 | 9 | 80 |
| SR 14-551 | M3 | 8.2 | T 9 | 2 | 17.7 | SR 14-542 | M5 | 18.3 | T20 | 9 | 80 |
| SR 10504970 | M3.5 | 8.1 | IP15 | 3.2 | 28.3 | SR 16-212 | M5 | 12.5 | T20 | 9 | 80 |
| SR 14-562 | M35 | 87 | T10 | 32 | 283 | SR 10503750 | M6 | 18 | T25 | 12 | 106 |
| SR M3.5X0.6-L8.5 IP10 | . M3.5 | . 8.5 | IP15 | . 3.2 | . 28.36 | SR 10507547 | M6 | 22.5 | IP25 | 9 | 80 |
| SR 14-562/S | M3.5 | 6.5 | T10 | 3.2 | 28.3 | SR 34-516 | M7x1 | 15.5 | T25 | 12 | 106 |
| SR 14-562XL | M3.5 | 10.7 | T10 | 3.2 | 28.3 | SR 34-515 | M8x1 | 17.2 | T25 | 12 | 106 |
| SR 14-571 | M35 | 87 | T10 | 32 | 283 | SR 10502813-HG-M | 4-48 UNF | 82 | IP7 | 12 | 106 |
| SR 14-571/L | . M3.5 | . 10 | T10 | . 3.2 | . 28.3 | SR 10502813-HGSM | 4-48 UNF | . 7 | IP7 | . 1.2 | . 10.6 |
| SR 14-601 | M3.5 | 11 | T15 | 3.2 | 28.3 | 12-28 | |||||
| SR 34-550 | M35 | 115 | T10 | 32 | 283 | SR 11800866 | UNF-RH/ | 18 | IP15 | 6 | 53 |
| SR 14-541 | . M4 | . 7.9 | T15 | . 4.8 | . 42.5 | LH | |||||
| SR 14-506 | M4 | 8.2 | T15 | 4.8 | 42.5 | NF 1/4- | |||||
| SR M4X0.7-L9.5 IP15 | M4 | 9.5 | IP15 | 4.8 | 42.5 | SR 118-069 | 28 NF | 13.3 | IP20 | 9 | 80 |
| SR M4X07-L96 IP15 | M4 | 965 | IP15 | 48 | 425 | 1/4-48 | |||||
| .. SR M4X0.7-L11.5 IP15 | M4 | . 11.5 | IP15 | . 4.8 | . 42.5 | SR 1/4-28xIP25 | UNF | 18.7 | IP25 | 9 | 80 |
* For T490…-11 cutters only
