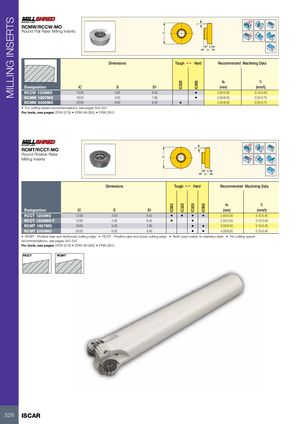

MILLING INSERTS
7°
RCMW/RCCW-MO
Round Flat Rake Milling Inserts IC Rd°


S
S1

Dimensions Tough 1 Hard Recommended Machining Data

ap fz


IC928

IC908
Designation IC S S1 (mm) (mm/t)
RCCW 1206MO 12.00 4.00 6.40 • 2.50-5.00 0.15-0.40
RCMW 1607MO 16.00 5.00 7.90 • 3.00-6.00 0.20-0.75
RCMW 2009MO 20.00 6.00 9.40 • 4.00-8.00 0.20-0.75
• For cutting speed recommendations, see pages 542-547
For tools, see pages: ERW (279) • ERW-M (280) • FRW (281)


RCMT/RCCT-MO 7°
Round Positive Rake Rd°
IC
Milling Inserts
S
S1

Dimensions Tough 1 Hard Recommended Machining Data

ap fz
IC882
IC328
IC928
IC908
Designation IC S S1 (mm) (mm/t)
RCCT 1206MO 12.00 4.00 6.40 • • • • 2.50-5.00 0.15-0.40
RCCT 1206MO-T 12.00 4.00 6.40 • • 2.50-5.00 0.15-0.40
RCMT 1607MO 16.00 5.00 7.90 • • 3.00-6.00 0.15-0.40
RCMT 2009MO 20.00 6.00 9.40 • • 4.00-8.00 0.15-0.40
• RCMT - Positive rake and reinforced cutting edge • RCCT - Positive rake and sharp cutting edge • Both used mainly on stainless steel • For cutting speed
recommendations, see pages 542-547
For tools, see pages: ERW (279) • ERW-M (280) • FRW (281)

RCCT RCMT


528 ISCAR
