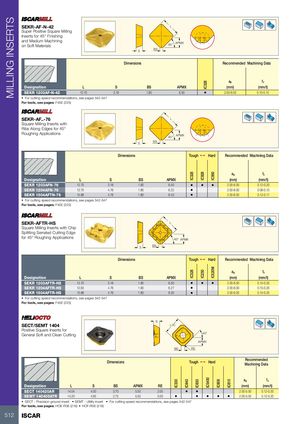

MILLING INSERTS
SEKR-AF-N-42 L
Super Positive Square Milling
Inserts for 45° Finishing
and Medium Machining APMX
45°
on Soft Materials
BS
S

Dimensions Recommended Machining Data

ap fz


IC328
Designation L S BS APMX (mm) (mm/t)
SEKR 1203AF-N-42 12.70 3.18 1.80 6.50 • 2.00-6.00 0.10-0.15
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F45E (225)


SEKR-AF..-76 L
Square Milling Inserts with
Ribs Along Edges for 45°
Roughing Applications APMX
45°
BS
S

Dimensions Tough 1 Hard Recommended Machining Data

ap fz

IC328
IC928
IC950
Designation L S BS APMX (mm) (mm/t)
SEKR 1203AFN-76 12.70 3.18 1.80 6.50 • • • 2.00-6.00 0.12-0.20
SEKR 1204AFN-76 12.70 4.76 1.80 6.22 • 2.00-6.00 0.08-0.15
SEKR 1504AFTN-76 15.88 4.76 1.80 8.43 • 2.00-6.00 0.12-0.17
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F45E (225)


SEKR-AFTR-HS L
Square Milling Inserts with Chip
Splitting Serrated Cutting Edge
for 45° Roughing Applications 45° APMX
BS
S

Dimensions Tough 1 Hard Recommended Machining Data
IC520M


ap fz
IC328
IC250


Designation L S BS APMX (mm) (mm/t)
SEKR 1203AFTR-HS 12.70 3.18 1.80 6.50 • • • 2.00-6.00 0.15-0.25
SEKR 1204AFTR-HS 12.63 4.76 1.80 6.27 • 2.00-6.00 0.15-0.25
SEKR 1504AFTR-HS 15.88 4.76 1.80 8.30 • 2.00-6.00 0.15-0.25
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F45E (225)


S
SECT/SEMT 1404 L/IC
Positive Square Inserts for
45°
General Soft and Clean Cutting
APMX
BS RE

Recommended
Dimensions Tough 1 Hard
Machining Data

ap fz
IC5400
IC330
IC840
IC830


IC808
IC810


Designation L S BS APMX RE (mm) (mm/t)
SECT 140420AR 14.04 4.50 3.70 5.50 2.00 • • 2.00-5.50 0.12-0.20
SEMT 140405ATR 14.20 4.95 2.75 5.50 0.50 • • • • • 2.00-5.50 0.12-0.20
• SECT - Precision ground insert • SEMT - Utility insert • For cutting speed recommendations, see pages 542-547
For tools, see pages: HOE-R06 (218) • HOF-R06 (218)
512 ISCAR
