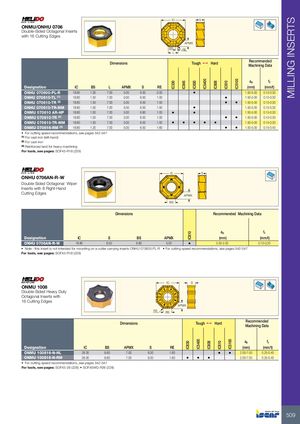

Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 193

IC330 IC845 IC810IC830 IC830 IC5400 IC5400 IC808 IC808 IC810 IC810 IC5100 IC5100 MILLING INSERTS IC S ONMU/ONHU 0706 Double-Sided Octagonal Inserts with 16 Cutting Edges APMX BS RE L Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation IC BS L APMX S RE (mm) (mm/t) ONHU 070600-PL-R 18.80 1.30 7.00 5.00 6.50 0.00 • 1.50-5.00 0.15-0.30 ONHU 070610-TL (1) 18.80 1.50 7.00 5.00 6.50 1.00 • 1.50-5.00 0.15-0.30 ONHU 070610-TR (2) 18.80 1.50 7.00 5.00 6.50 1.00 • • 1.50-5.00 0.15-0.30 ONHU 070610-TR-MM 18.80 1.50 7.00 5.00 6.50 1.00 • 1.50-5.00 0.15-0.30 ONMU 070610 AR-HP 18.80 1.00 7.00 5.00 6.80 1.00 • • 1.50-5.00 0.15-0.30 ONMU 070610-TR (2) 18.80 1.50 7.00 5.00 6.50 1.00 • • 1.50-5.00 0.15-0.30 ONMU 070610-TR-MM 18.80 1.50 7.00 5.00 6.50 1.00 • • • • • 1.50-5.00 0.15-0.30 ONMU 070616-RM (3) 18.80 1.20 7.00 5.00 6.50 1.60 • • 1.50-5.00 0.15-0.40 • For cutting speed recommendations, see pages 542-547 (1) For cast iron (left-hand) (2) For cast iron (3) Reinforced land for heavy machining For tools, see pages: SOF45-R18 (229) IC S ONHU 0706AN-R-W Double-Sided Octagonal Wiper Inserts with 8 Right-Hand Cutting Edges APMX BS Dimensions Recommended Machining Data ap fz Designation IC S BS APMX (mm) (mm/t) ONHU 0706AN-R-W 18.80 6.50 6.80 5.00 • 0.50-2.00 0.10-0.20 • Note : this insert is not intended for mounting on a cutter carrying inserts ONHU 070600-PL-R • For cutting speed recommendations, see pages 542-547 For tools, see pages: SOF45-R18 (229) IC S ONMU 1008 Double-Sided Heavy Duty Octagonal Inserts with 16 Cutting Edges APMX RE BS Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation IC BS APMX S RE (mm) (mm/t) ONMU 100816-N-HL 26.30 9.60 7.00 9.30 1.60 • • 2.00-7.00 0.25-0.40 ONMU 100816-N-RM 26.30 9.60 7.00 9.30 1.60 • • • 2.00-7.00 0.25-0.40 • For cutting speed recommendations, see pages 542-547 For tools, see pages: SOF45-26 (228) • SOF45WG-R26 (228) 509
