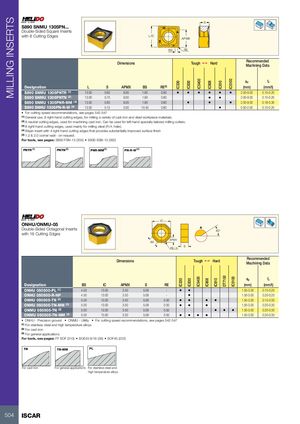

MILLING INSERTS IC330 IC330 IC830IC830 IC5400IC5400 IC808 IC808 IC810 IC810 DT7150 IC5100IC5100 S S890 SNMU 1305PN... Double-Sided Square Inserts with 8 Cutting Edges L/IC APMX BS RE Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation L S APMX BS RE(5) (mm) (mm/t) S890 SNMU 1305PNTR (1) 13.00 5.60 9.00 1.80 0.80 • • • • • • 2.00-9.00 0.10-0.20 S890 SNMU 1305PNTN (2) 13.00 5.70 9.00 1.80 0.80 • • 2.00-9.00 0.10-0.20 S890 SNMU 1305PNR-MM (3) 13.00 5.60 9.00 1.80 0.80 • • • 2.00-9.00 0.18-0.30 S890 SNHU 1305PN-R-W (4) 13.00 5.15 5.00 10.40 0.80 • 0.50-2.00 0.10-0.20 • For cutting speed recommendations, see pages 542-547 (1) General use, 8 right-hand cutting edges, for milling a variety of cast iron and steel workpiece materials. (2) 8 neutral cutting edges, used for machining cast iron. Can be used for left-hand specially tailored milling cutters. (3) 8 right-hand cutting edges, used mainly for milling steel (R.H. helix). (4) Wiper insert with 4 right-hand cutting edges that provides substantially improved surface finish (5) 1.2 & 2.0 corner radii - on request. For tools, see pages: S890 FSN-13 (205) • S890 SSB-13 (362) PNTR (1) PNTN (2) PNR-MM(3) PN-R-W (4) IC ONHU/ONMU-05 Double-Sided Octagonal Inserts A 45° with 16 Cutting Edges APMX BS RE / A S Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation BS IC APMX S RE (mm) (mm/t) ONHU 050500-PL (1) 4.50 13.00 3.50 5.08 - • • 1.50-3.00 0.15-0.20 ONHU 050500-R-HP 4.50 13.00 3.50 5.08 - • 1.50-3.00 0.20-0.25 ONHU 050505-TN (2) 5.00 13.00 3.50 5.08 0.50 • • • • 1.50-3.00 0.15-0.30 ONHU 050505-TN-MM (3) 5.00 13.00 3.50 5.08 0.50 • • • 1.50-3.00 0.20-0.30 ONMU 050505-TN (2) 5.00 13.00 3.50 5.08 0.50 • • • 1.50-3.00 0.20-0.30 ONMU 050505-TN-MM (3) 5.00 13.00 3.50 5.08 0.50 • • • • 1.50-3.00 0.20-0.30 • ONHU - Precision ground • ONMU - Utility • For cutting speed recommendations, see pages 542-547 (1) For stainless steel and high temperature alloys (2) For cast iron (3) For general applications For tools, see pages: FF SOF (310) • SOE45 8/16 (38) • SOF45 (222) TN TN-MM PL For cast iron For general applications For stainless steel and high temperature alloys 504 ISCAR
