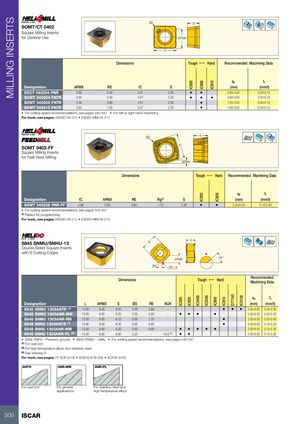

MILLING INSERTS
RE S
SOMT/CT 0402
Square Milling Inserts
for General Use APMX

IC

Dimensions Tough 1 Hard Recommended Machining Data

ap fz


IC830
IC808
IC810
Designation APMX RE IC S (mm) (mm/t)
SOCT 040204 PNR 3.50 0.40 4.07 2.20 • • 0.80-3.50 0.04-0.10
SOMT 040204 PNTR 3.50 0.40 4.07 2.20 • • • 0.80-3.50 0.04-0.10
SOMT 040208 PNTR 3.50 0.80 4.07 2.20 • 1.20-3.50 0.04-0.10
SOMT 040212 PNTR 3.50 1.20 4.07 2.20 • 1.60-3.50 0.04-0.10
• For cutting speed recommendations, see pages 542-547 • For left or right hand machining
For tools, see pages: E90SO-04 (11) • E90SO-MM-04 (11)


RE S

IC
SOMT 0402-FF
Square Milling Inserts
for Fast Feed Milling
APMX

Dimensions Tough 1 Hard Recommended Machining Data

ap fz
IC830

IC808
Designation IC APMX RE Rg(1) S (mm) (mm/t)
SOMT 040208 PNR-FF 4.08 0.50 0.80 1.10 2.20 • • 0.20-0.50 0.10-0.50
• For cutting speed recommendations, see pages 542-547
(1) Radius for programming
For tools, see pages: E90SO-04 (11) • E90SO-MM-04 (11)


S
IC
S845 SNMU/SNHU-13
Double-Sided Square Inserts
with 8 Cutting Edges A
45°
APMX
BS
RE / A

Recommended
Dimensions Tough 1 Hard
Machining Data
DT7150


ap fz
IC5400
IC5500


IC5100
IC330
IC830


IC808
IC810


Designation L APMX S BS RE KCH (mm) (mm/t)
S845 SNMU 1305ANTR (1) 13.00 6.00 6.20 3.00 0.80 - • • • 2.00-6.00 0.20-0.40
S845 SNMU 1305ANR-MM 13.00 6.00 6.20 3.00 0.80 - • • • • 2.00-6.00 0.20-0.40
S845 SNMU 1305ANR-RM 13.00 6.00 6.12 3.00 1.20 - • 2.00-6.00 0.20-0.40
S845 SNHU 1305ANTR (1) 13.00 6.00 6.20 3.00 0.80 - • 2.00-6.00 0.15-0.30
S845 SNHU 1305ANR-MM 13.00 6.00 6.20 3.00 0.80 - • • • • • 2.00-6.00 0.15-0.30
S845 SNHU 1305ANR-PL (2) 13.00 6.00 6.00 2.20 - 45.0 (3) • • 2.00-6.00 0.15-0.30
• S845 SNHU - Precision ground • S845 SNMU - Utility • For cutting speed recommendations, see pages 542-547
(1) For cast iron
(2) For high temperature alloys and stainless steel
(3) See drawing A
For tools, see pages: FF SOF (310) • SOE45 8/16 (38) • SOF45 (222)
ANTR ANR-MM ANR-PL


For cast iron For general For stainless steel and
applications high temperature alloys


500 ISCAR
