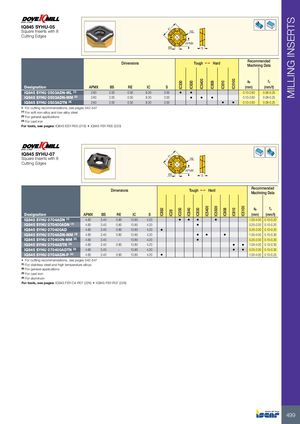

Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 183

MILLING INSERTS
IQ845 SYHU-05 IC
Square Inserts with 8 RE
Cutting Edges
APMX
BS S

Recommended
Dimensions Tough 1 Hard
Machining Data

ap fz


IC5400


IC5100
IC330
IC830


IC808
IC810
Designation APMX BS RE IC S (mm) (mm/t)
IQ845 SYHU 0503ADN-ML (1) 2.60 2.00 0.50 8.30 3.00 • • 0.10-2.60 0.08-0.25
IQ845 SYHU 0503ADN-MM (2) 2.60 2.00 0.50 8.30 3.00 • • • 0.10-2.60 0.08-0.25
IQ845 SYHU 0503ADTN (3) 2.60 2.00 0.50 8.30 3.00 • • 0.10-2.60 0.08-0.25
• For cutting recommendations, see pages 542-547
(1) For soft non-alloy and low-alloy steel
(2) For general applications
(3) For cast iron
For tools, see pages: IQ845 ESY-R05 (219) • IQ845 FSY-R05 (220)


IQ845 SYHU-07 IC
Square Inserts with 8 RE
Cutting Edges
APMX
BS S

Recommended
Dimensions Tough 1 Hard
Machining Data

IC5400 ap fz
IC5500


IC5100
IC882

IC330
IC840
IC830


IC808
IC810
IC28


Designation APMX BS RE IC S (mm) (mm/t)
IQ845 SYHU 0704ADN (1) 4.60 3.40 0.80 13.80 4.20 • • • • 1.00-4.00 0.10-0.20
IQ845 SYHU 070400ADN (1) 4.60 3.40 0.80 13.80 4.20 • 0.20-2.00 0.10-0.20
IQ845 SYHU 070400AD 4.60 3.40 0.80 13.80 4.20 • 0.20-2.00 0.10-0.20
IQ845 SYHU 0704ADN-MM (2) 4.60 3.40 0.80 13.80 4.20 • • • 1.00-4.00 0.15-0.30
IQ845 SYHU 070400N-MM (2) 4.60 3.40 - 13.80 4.20 • 0.20-2.00 0.15-0.30
IQ845 SYHU 0704ADTN (3) 4.60 3.40 0.80 13.80 4.20 • • 1.00-4.00 0.15-0.30
IQ845 SYHU 070400ADTN (3) 4.60 3.40 - 13.80 4.20 • • 0.20-2.00 0.15-0.30
IQ845 SYHU 0704ADN-P (4) 4.60 3.40 0.80 13.80 4.20 • 1.00-4.00 0.10-0.25
• For cutting recommendations, see pages 542-547
(1) For stainless steel and high temperature alloys
(2) For general applications
(3) For cast iron
(4) For aluminum
For tools, see pages: IQ845 FSY-C#-R07 (226) • IQ845 FSY-R07 (226)


499
