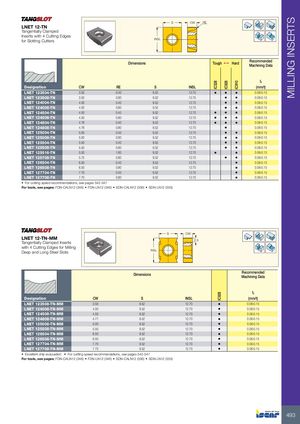

Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 177

IC328 IC928 IC928 IC910 MILLING INSERTS S CW RE LNET 12-TN Tangentially Clamped Inserts with 4 Cutting Edges for Slotting Cutters INSL Dimensions Tough 1  Hard RecommendedMachining Data fz Designation CW RE S INSL (mm/t) LNET 123504-TN 3.50 0.40 9.52 12.70 • • • 0.06-0.15 LNET 123508-TN 3.50 0.80 9.52 12.70 • • 0.06-0.15 LNET 124004-TN 4.00 0.40 9.52 12.70 • • 0.06-0.15 LNET 124008-TN 4.00 0.80 9.52 12.70 • • 0.06-0.15 LNET 124504-TN 4.50 0.40 9.52 12.70 • • • 0.06-0.15 LNET 124508-TN 4.50 0.80 9.52 12.70 • • • 0.06-0.15 LNET 124804-TN 4.76 0.40 9.52 12.70 • • • 0.06-0.15 LNET 124808-TN 4.76 0.80 9.52 12.70 • 0.06-0.15 LNET 125004-TN 5.00 0.40 9.52 12.70 • • 0.06-0.15 LNET 125008-TN 5.00 0.80 9.52 12.70 • • 0.06-0.15 LNET 125504-TN 5.50 0.40 9.52 12.70 • • 0.06-0.15 LNET 125508-TN 5.50 0.80 9.52 12.70 • • 0.06-0.15 LNET 125516-TN 5.50 1.60 9.52 12.70 • • 0.06-0.15 LNET 125708-TN 5.75 0.80 9.52 12.70 • • 0.06-0.15 LNET 126504-TN 6.50 0.40 9.52 12.70 • 0.06-0.15 LNET 126508-TN 6.50 0.80 9.52 12.70 • 0.06-0.15 LNET 127704-TN 7.70 0.40 9.52 12.70 • 0.06-0.15 LNET 127708-TN 7.70 0.80 9.52 12.70 • 0.06-0.15 • For cutting speed recommendations, see pages 542-547 For tools, see pages: FDN-CALN12 (348) • FDN-LN12 (346) • SDN-CALN12 (356) • SDN-LN12 (355) S CW LNET 12-TN-MM 2.5 Tangentially Clamped Inserts with 4 Cutting Edges for Milling Deep and Long Steel Slots INSL Dimensions RecommendedMachining Data fz Designation CW S INSL (mm/t) LNET 123508-TN-MM 3.50 9.52 12.70 • 0.06-0.15 LNET 124008-TN-MM 4.00 9.52 12.70 • 0.06-0.15 LNET 124508-TN-MM 4.50 9.52 12.70 • 0.06-0.15 LNET 124808-TN-MM 4.77 9.52 12.70 • 0.06-0.15 LNET 125008-TN-MM 5.00 9.52 12.70 • 0.06-0.15 LNET 125508-TN-MM 5.50 9.52 12.70 • 0.06-0.15 LNET 126504-TN-MM 6.50 9.52 12.70 • 0.06-0.15 LNET 126508-TN-MM 6.50 9.52 12.70 • 0.06-0.15 LNET 127704-TN-MM 7.70 9.52 12.70 • 0.06-0.15 LNET 127708-TN-MM 7.70 9.52 12.70 • 0.06-0.15 • Excellent chip evacuation • For cutting speed recommendations, see pages 542-547 For tools, see pages: FDN-CALN12 (348) • FDN-LN12 (346) • SDN-CALN12 (356) • SDN-LN12 (355) 493
