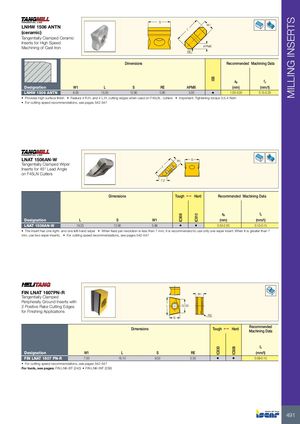

LNHW 1506 ANTN W 1 (ceramic) Tangentially Clamped Ceramic Inserts for High Speed Machining of Cast Iron APMX RE Dimensions Recommended Machining Data
a f p z
| Designation | W1 | L | S | RE | APMX | (mm) | (mm/t) | |
| LNHW 1506 ANTN | 6.00 | 15.30 | 12.90 | 0.80 | 3.00 | • | 1.00-3.00 | 0.15-0.25 |
- Provides high surface finish
- Feature 4 R.H. and 4 L.H. cutting edges when used on F45LN.. cutters
- Important: Tightening torque 3.5-4 Nxm
- For cutting speed recommendations, see pages 542-547
LNAT 1506AN-W Tangentially Clamped Wiper Inserts for 45° Lead Angle on F45LN Cutters
Dimensions
S W1 L
7.2
Tough 1 Hard Recommended Machining Data
a f p z
| Designation | L | S | W1 | (mm) | (mm/t) | ||
| LNAT 1506AN-W | 19.33 | 12.90 | 5.98 | • | • | 0.50-2.00 | 0.10-0.15 |
- The insert has one right- and one left-hand wiper
- When feed per revolution is less than 7 mm, it is recommended to use only one wiper insert. When it is greater than 7
mm, use two wiper inserts. For cutting speed recommendations, see pages 542-547
FIN LNAT 1607PN-R Tangentially Clamped Peripherally Ground Inserts with 2 Positive Rake Cutting Edges for Finishing Applications
Designation W1 FIN LNAT 1607 PN-R 7.00
- For cutting speed recommendations, see pages 542-547
For tools, see pages: FIN LNK-BT (240) FIN LNK-INT (239)
L 16.10
Dimensions
S 9.50
L
S
W1 12.55
RE 0.30
RE
Tough 1 Hard
Recommended Machining Data
fz (mm/t) 0.08-0.15
