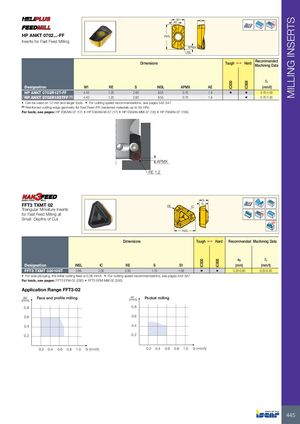

HP ANKT 0702...-FF
Inserts for Fast Feed Milling
Dimensions
W1 S AE Rd°
INSL
APMX RE
Tough 1 Hard Recommended Machining Data
f
z
| Designation | W1 | RE | S | INSL | APMX | AE | (mm/t) | ||
| HP ANKT 0702R12T-FF | 4.40 | 1.20 | 2.60 | 8.55 | 0.70 | 1.9 | • | • | 0.70-1.00 |
| HP ANKT 0702R12GTFF (1) | 4.40 | 1.20 | 2.60 | 8.55 | 0.70 | 1.9 | • | 0.70-1.00 |
- Can be used on 12 mm and larger tools
- For cutting speed recommendations, see pages 542-547
(1) Reinforced cutting-edge geometry for Fast Feed (FF) hardened materials up to 64 HRc
For tools, see pages: HP E90AN-07 (17) HP E90AN-M-07 (17) HP E90AN-MM-07 (18) HP F90AN-07 (195)
APMX
RE 1.2
S1 FFT3 TXMT 02 S RE IC
Triangular Miniature Inserts
for Fast Feed Milling at Rd°
Small Depths of Cut
INSL
Dimensions Tough 1 Hard Recommended Machining Data
a f
p z
| Designation | INSL | IC | RE | S | S1 | (mm) | (mm/t) | ||
| FFT3 TXMT 020105T | 3.66 | 2.00 | 0.50 | 1.10 | 1.56 | • | • | 0.20-0.60 | 0.20-0.45 |
- For side plunging, the initial cutting feed is 0.06 mm/t
- For cutting speed recommendations, see pages 542-547
For tools, see pages: FFT3 EFM-02 (292) FFT3 EFM-MM 02 (292)
Application Range FFT3-02
| ap | Pocket milling Face and profile milling ap |
| (mm) | (mm) |
| 0.8 | 0.8 |
| 0.6 | 0.6 |
| 0.4 | 0.4 |
| 0.2 | 0.2 |
0.2 0.4 0.6 0.8 1.0 fz (mm/t) 0.2 0.4 0.6 0.8 1.0 fz (mm/t)
