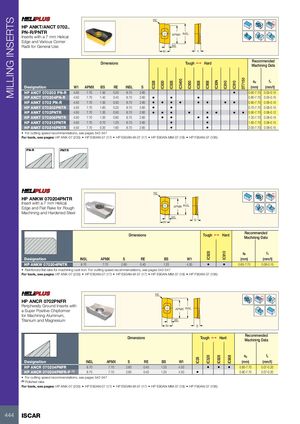

MILLING INSERTS
RE Rd°

HP ANKT/ANCT 0702..
PN-R/PNTR APMX lNSL
Inserts with a 7 mm Helical
Edge and Various Corner
Radii for General Use BS
W1 S

Recommended
Dimensions Tough 1 Hard
Machining Data


DT7150
ap fz


IC5400


IC30N
IC328
IC830
IC928

IC950
IC808
IC908

IC810
IC910
Designation W1 APMX BS RE INSL S (mm) (mm/t)
HP ANCT 070202 PN-R 4.50 7.70 1.50 0.20 8.70 2.60 • 0.60-7.70 0.05-0.10
HP ANCT 070204PN-R 4.50 7.70 1.40 0.40 8.70 2.60 • • • 0.80-7.70 0.05-0.10
HP ANKT 0702 PN-R 4.50 7.70 1.30 0.50 8.70 2.60 • • • • • • • • 0.90-7.70 0.06-0.10
HP ANKT 070202PNTR 4.50 7.70 1.60 0.20 8.70 2.60 • • 0.70-7.70 0.08-0.15
HP ANKT 0702PNTR 4.50 7.70 1.30 0.50 8.70 2.60 • • • • • • • • 0.90-7.70 0.08-0.12
HP ANKT 070208PNTR 4.50 7.70 1.00 0.80 8.70 2.60 • • • • 1.20-7.70 0.08-0.15
HP ANKT 070212PNTR 4.50 7.70 0.70 1.20 8.70 2.60 • • 1.60-7.70 0.08-0.15
HP ANKT 070216PNTR 4.50 7.70 0.20 1.60 8.70 2.60 • • 2.00-7.70 0.08-0.15
• For cutting speed recommendations, see pages 542-547
For tools, see pages: HP ANK-07 (235) • HP E90AN-07 (17) • HP E90AN-M-07 (17) • HP E90AN-MM-07 (18) • HP F90AN-07 (195)

PN-R PNTR


RE Rd°

HP ANKW 070204PNTR
Insert with a 7 mm Helical
APMX lNSL
Edge and Flat Rake for Rough
Machining and Hardened Steel
BS
S
W1

Recommended
Dimensions Tough 1 Hard
Machining Data

ap fz
IC928

IC910


Designation INSL APMX S RE BS W1 (mm) (mm/t)
HP ANKW 070204PNTR 8.70 7.70 2.60 0.40 1.20 4.50 • • 0.80-7.70 0.08-0.15
• Reinforced flat rake for machining cast iron. For cutting speed recommendations, see pages 542-547
For tools, see pages: HP ANK-07 (235) • HP E90AN-07 (17) • HP E90AN-M-07 (17) • HP E90AN-MM-07 (18) • HP F90AN-07 (195)


RE Rd°

HP ANCR 0702PNFR
Peripherally Ground Inserts with
APMX lNSL
a Super Positive Chipformer
for Machining Aluminum,
Titanium and Magnesium BS
W1 S

Recommended
Dimensions Tough 1 Hard
Machining Data

ap fz
IC328
IC928
IC908
IC28


Designation INSL APMX S RE BS W1 (mm) (mm/t)
HP ANCR 070204PNFR 8.70 7.70 2.60 0.40 1.20 4.50 • • • 0.80-7.70 0.07-0.20
HP ANCR 070204PNFR-P (1) 8.70 7.70 2.60 0.40 1.20 4.50 • 0.80-7.70 0.07-0.20
• For cutting speed recommendations, see pages 542-547
(1) Polished rake
For tools, see pages: HP ANK-07 (235) • HP E90AN-07 (17) • HP E90AN-M-07 (17) • HP E90AN-MM-07 (18) • HP F90AN-07 (195)


444 ISCAR
