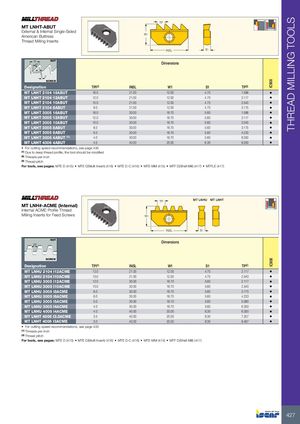

IC908IC908 THREAD MILLING TOOLS TP MT LNHT-ABUT External & Internal Single-Sided American Buttress W1 Thread Milling Inserts INSL S1 TP NUT45° Dimensions 0.16316TP 7° SCREW Designation TPI(2) INSL W1 S1 TP(3) MT LNHT 2104 16ABUT 16.0 21.00 12.00 4.70 1.588 • MT LNHT 2104 12ABUT 12.0 21.00 12.00 4.70 2.117 • MT LNHT 2104 10ABUT 10.0 21.00 12.00 4.70 2.540 • MT LNHT 2104 8ABUT 8.0 21.00 12.00 4.70 3.175 • MT LNHT 3005 16ABUT 16.0 30.00 16.70 5.60 1.588 • MT LNHT 3005 12ABUT 12.0 30.00 16.70 5.60 2.117 • MT LNHT 3005 10ABUT 10.0 30.00 16.70 5.60 2.540 • MT LNHT 3005 8ABUT 8.0 30.00 16.70 5.60 3.175 • MT LNHT 3005 6ABUT 6.0 30.00 16.70 5.60 4.233 • MT LNHT 3005 4ABUT (1) 4.0 30.00 16.70 5.60 6.350 • MT LNHT 4006 4ABUT 4.0 40.00 20.00 6.30 6.350 • • For cutting speed recommendations, see page 435 (1) Due to deep thread profile, the tool should be modified (2) Threads per inch (3) Thread pitch For tools, see pages: MTE D (415) • MTE D(Multi Insert) (416) • MTE D-C (416) • MTE-MM (415) • MTF D(Shell Mill) (417) • MTFLE (417) TP MT LNHU MT LNHT MT LNH#-ACME (Internal) Internal ACME Profile Thread Milling Inserts for Feed Screws W1 INSL S1 NUT Dimensions 29° SCREW Designation TPI(1) INSL W1 S1 TP(2) MT LNHU 2104 I12ACME 12.0 21.00 12.00 4.70 2.117 • MT LNHU 2104 I10ACME 10.0 21.00 12.00 4.70 2.540 • MT LNHU 3005 I12ACME 12.0 30.00 16.70 5.60 2.117 • MT LNHU 3005 I10ACME 10.0 30.00 16.70 5.60 2.540 • MT LNHU 3005 I8ACME 8.0 30.00 16.70 5.60 3.175 • MT LNHU 3005 I6ACME 6.0 30.00 16.70 5.60 4.233 • MT LNHU 3005 I5ACME 5.0 30.00 16.70 5.60 5.080 • MT LNHU 3005 I4ACME 4.0 30.00 16.70 5.60 6.350 • MT LNHU 4006 I4ACME 4.0 40.00 20.00 6.30 6.350 • MT LNHT 4006 I3.5ACME 3.5 40.00 20.00 6.30 7.257 • MT LNHT 4006 I3ACME 3.0 40.00 20.00 6.30 8.467 • • For cutting speed recommendations, see page 435 (1) Threads per inch (2) Thread pitch For tools, see pages: MTE D (415) • MTE D(Multi Insert) (416) • MTE D-C (416) • MTE-MM (415) • MTF D(Shell Mill) (417) 427
