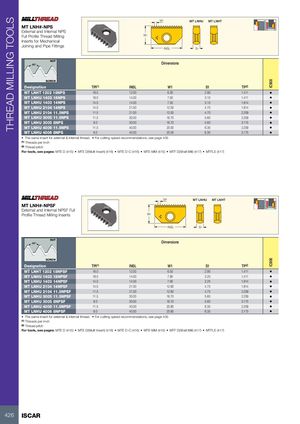

THREAD MILLING TOOLS IC908IC908 TP MT LNHU MT LNHT MT LNH#-NPS External and Internal NPS Full Profile Thread Milling W1 Inserts for Mechanical Joining and Pipe Fittings INSL S1 NUT60° Dimensions SCREW Designation TPI(1) INSL W1 S1 TP(2) MT LNHT 1202 18NPS 18.0 12.00 6.30 2.90 1.411 • MT LNHU 1403 18NPS 18.0 14.00 7.50 3.10 1.411 • MT LNHU 1403 14NPS 14.0 14.00 7.50 3.10 1.814 • MT LNHU 2104 14NPS 14.0 21.00 12.00 4.70 1.814 • MT LNHU 2104 11.5NPS 11.5 21.00 12.00 4.70 2.209 • MT LNHU 3005 11.5NPS 11.5 30.00 16.70 5.60 2.209 • MT LNHU 3005 8NPS 8.0 30.00 16.70 5.60 3.175 • MT LNHU 4006 11.5NPS 11.5 40.00 20.00 6.30 2.209 • MT LNHU 4006 8NPS 8.0 40.00 20.00 6.30 3.175 • • The same insert for external & internal thread. • For cutting speed recommendations, see page 435 (1) Threads per inch (2) Thread pitch For tools, see pages: MTE D (415) • MTE D(Multi Insert) (416) • MTE D-C (416) • MTE-MM (415) • MTF D(Shell Mill) (417) • MTFLE (417) TP MT LNHU MT LNHT MT LNH#-NPSF External and Internal NPSF Full Profile Thread Milling Inserts W1 INSL S1 NUT60° Dimensions SCREW Designation TPI(1) INSL W1 S1 TP(2) MT LNHT 1202 18NPSF 18.0 12.00 6.50 2.90 1.411 • MT LNHU 1403 18NPSF 18.0 14.00 7.90 3.20 1.411 • MT LNHU 1403 14NPSF 14.0 14.00 7.90 3.20 1.814 • MT LNHU 2104 14NPSF 14.0 21.00 12.60 4.75 1.814 • MT LNHU 2104 11.5NPSF 11.5 21.00 12.60 4.75 2.209 • MT LNHU 3005 11.5NPSF 11.5 30.00 16.70 5.60 2.209 • MT LNHU 3005 8NPSF 8.0 30.00 16.70 5.60 3.175 • MT LNHU 4006 11.5NPSF 11.5 40.00 20.80 6.35 2.209 • MT LNHU 4006 8NPSF 8.0 40.00 20.80 6.35 3.175 • • The same insert for external & internal thread. • For cutting speed recommendations, see page 435 (1) Threads per inch (2) Thread pitch For tools, see pages: MTE D (415) • MTE D(Multi Insert) (416) • MTE D-C (416) • MTE-MM (415) • MTF D(Shell Mill) (417) • MTFLE (417) 426 ISCAR
