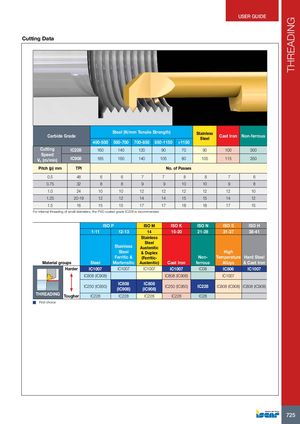

Каталог Iscar державки и пластины для нарезания резьбы 2022 - страница 91
Навигация
Каталог Iscar сверла со сменной режущей частью 2022
Каталог Iscar новые продукты 2018
Каталог Iscar концевые фрезы со сменными пластинами 2022
Каталог Iscar инструмент для нарезания резьбы
Каталог Iscar отрезка 2022
Каталог Iscar торцевые фрезы 2022
Cutting Data
Steel (N/mm Tensile Strength) Stainless Carbide Grade Cast Iron Non-ferrous Steel 400-500 500-700 700-850 850-1150 >1150
| Cutting | IC228 | 160 | 140 | 120 | 90 | 70 | 90 | 100 | 300 |
| Speed | |||||||||
| V (m/min) | IC908 | 185 | 160 | 140 | 105 | 80 | 105 | 115 | 350 |
| c |
Pitch (p) mm TPI No. of Passes
| 0.5 | 48 | 6 | 6 | 7 | 7 | 8 | 8 | 7 | 6 |
| 0.75 | 32 | 8 | 8 | 9 | 9 | 10 | 10 | 9 | 8 |
| 1.0 | 24 | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 10 |
| 1.25 | 20-19 | 12 | 12 | 14 | 14 | 15 | 15 | 14 | 12 |
| 1.5 | 16 | 15 | 15 | 17 | 17 | 18 | 18 | 17 | 15 |
For internal threading of small diameters, the PVD coated grade IC228 is recommended.
| ISO | P | ISO M | ISO K | ISO N | ISO S | ISO H | ||
| 1-11 | 12-13 | 14 | 15-20 | 21-28 | 31-37 | 38-41 | ||
| Material gr | oups | Steel | Stainless Steel Ferritic & Martensitic | Stainless Steel Austenitic & Duplex (Ferritic- Austenitic) | Cast Iron | Non- ferrous | High Temperature Alloys | Hard Steel & Cast Iron |
| Harder | IC1007 | IC1007 | IC1007 | IC1007 | IC08 | IC806 | IC1007 | |
| IC808 (IC908) | IC808 (IC908) | IC1007 | ||||||
| IC250 (IC950) | IC808 (IC908) | IC808 (IC908) | IC250 (IC950) | IC228 | IC808 (IC908) | IC808 (IC908) | ||
| THREADING | Tougher | IC228 | IC228 | IC228 | IC228 | IC28 |
First choice
