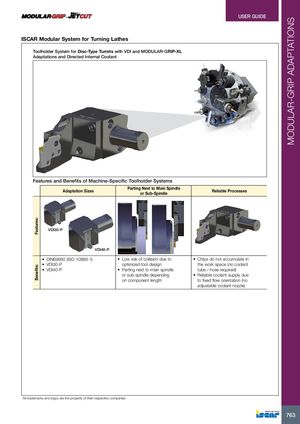

Features:Benefits: MODULAR-GRIP ADAPTATIONS · USER GUIDE ISCAR Modular System for Turning Lathes Toolholder System for Disc-Type Turrets with VDI and MODULAR-GRIP-XL Adaptations and Directed Internal Coolant Features and Benefits of Machine-Specific Toolholder Systems Adaptation Sizes Parting Next to Main Spindleor Sub-Spindle Reliable Processes VDI30-P VDI40-P • DIN69880 (ISO 10889-1) • Low risk of collision due to • Chips do not accumulate in • VDI30-P optimized tool design the work space (no coolant • VDI40-P • Parting next to main spindle tube / hose required) or sub-spindle depending • Reliable coolant supply due on component length to fixed flow orientation (no adjustable coolant nozzle) All trademarks and logos are the property of their respective companies 763
