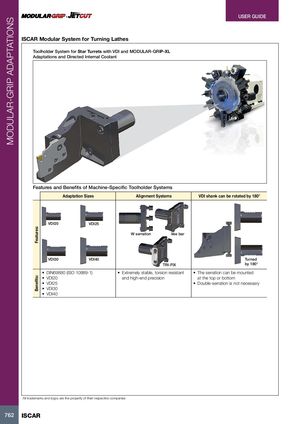

MODULAR-GRIP ADAPTATIONS Features:Benefits: · USER GUIDE ISCAR Modular System for Turning Lathes Toolholder System for Star Turrets with VDI and MODULAR-GRIP-XL Adaptations and Directed Internal Coolant Features and Benefits of Machine-Specific Toolholder Systems Adaptation Sizes Alignment Systems VDI shank can be rotated by 180° VDI20 VDI25 W serration Vee bar VDI30 VDI40 Turned TRI-FIX by 180° • DIN69880 (ISO 10889-1) • Extremely stable, torsion resistant • The serration can be mounted • VDI20 and high-end precision at the top or bottom • VDI25 • Double-serration is not necessary • VDI30 • VDI40 All trademarks and logos are the property of their respective companies 762 ISCAR
