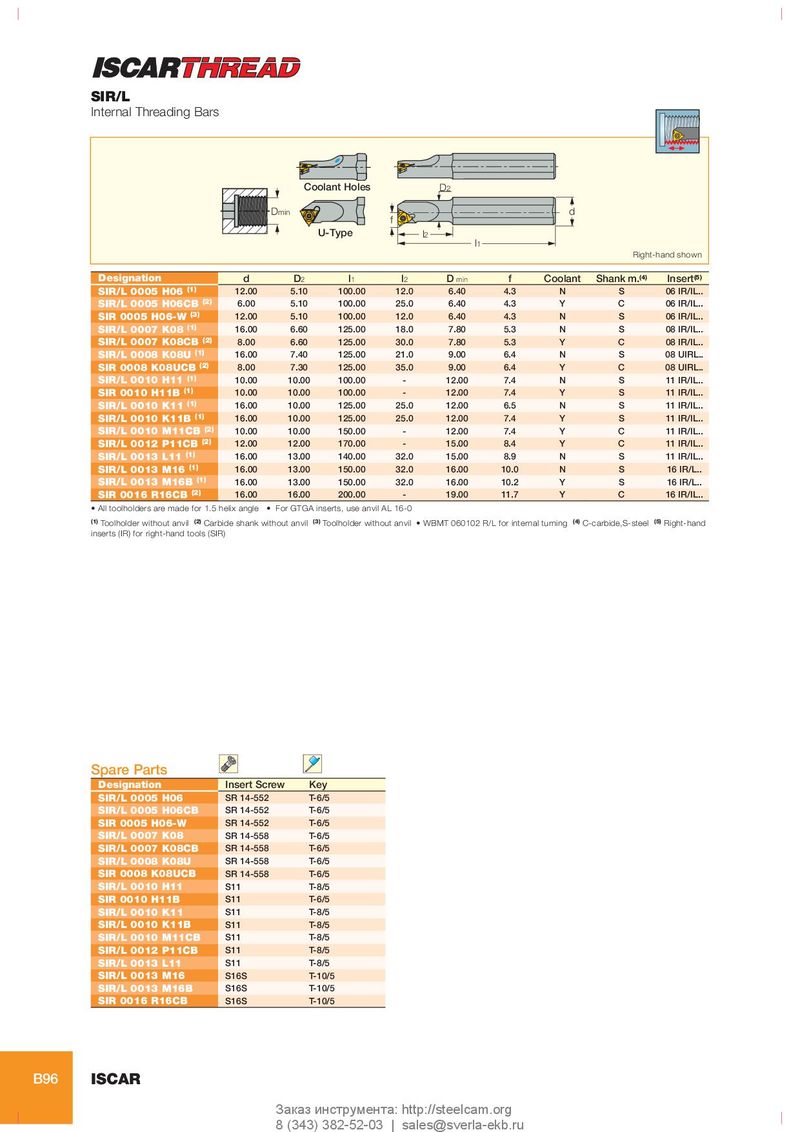

SIR/L
Internal Threading Bars
| Dmin Coo | lant Holes | f | D2 | d | ||||
| U | -Type | l | l1 2 | Right-hand shown | ||||
| Designation | d | D2 | l1 | l2 | Dmin | f | Coolant | Shank m.(4) Insert(5) |
| SIR/L 0005 H06(1) | 12.00 | 5.10 | 100.00 | 12.0 | 6.40 | 4.3 | N | S 06 IR/IL.. |
| SIR/L 0005 H06CB(2) | 6.00 | 5.10 | 100.00 | 25.0 | 6.40 | 4.3 | Y | C 06 IR/IL.. |
| SIR 0005 H06-W(3) | 12.00 | 5.10 | 100.00 | 12.0 | 6.40 | 4.3 | N | S 06 IR/IL.. |
| SIR/L 0007 K08(1) | 16.00 | 6.60 | 125.00 | 18.0 | 7.80 | 5.3 | N | S 08 IR/IL.. |
| SIR/L 0007 K08CB(2) | 8.00 | 6.60 | 125.00 | 30.0 | 7.80 | 5.3 | Y | C 08 IR/IL.. |
| SIR/L 0008 K08U(1) | 16.00 | 7.40 | 125.00 | 21.0 | 9.00 | 6.4 | N | S 08 UIRL.. |
| SIR 0008 K08UCB(2) | 8.00 | 7.30 | 125.00 | 35.0 | 9.00 | 6.4 | Y | C 08 UIRL.. |
| SIR/L 0010 H11(1) | 10.00 | 10.00 | 100.00 | - | 12.00 | 7.4 | N | S 11 IR/IL.. |
| SIR 0010 H11B(1) | 10.00 | 10.00 | 100.00 | - | 12.00 | 7.4 | Y | S 11 IR/IL.. |
| SIR/L 0010 K11(1) | 16.00 | 10.00 | 125.00 | 25.0 | 12.00 | 6.5 | N | S 11 IR/IL.. |
| SIR/L 0010 K11B(1) | 16.00 | 10.00 | 125.00 | 25.0 | 12.00 | 7.4 | Y | S 11 IR/IL.. |
| SIR/L 0010 M11CB(2) | 10.00 | 10.00 | 150.00 | - | 12.00 | 7.4 | Y | C 11 IR/IL.. |
| SIR/L 0012 P11CB(2) | 12.00 | 12.00 | 170.00 | - | 15.00 | 8.4 | Y | C 11 IR/IL.. |
| SIR/L 0013 L11(1) | 16.00 | 13.00 | 140.00 | 32.0 | 15.00 | 8.9 | N | S 11 IR/IL.. |
| SIR/L 0013 M16(1) | 16.00 | 13.00 | 150.00 | 32.0 | 16.00 | 10.0 | N | S 16 IR/L.. |
| SIR/L 0013 M16B(1) | 16.00 | 13.00 | 150.00 | 32.0 | 16.00 | 10.2 | Y | S 16 IR/L.. |
| SIR 0016 R16CB(2) | 16.00 | 16.00 | 200.00 | - | 19.00 | 11.7 | Y | C 16 IR/IL.. |
- All toolholders are made for 1.5 helix angle
- For GTGA inserts, use anvil AL 16-0
(1) Toolholder without anvil (2) Carbide shank without anvil (3) Toolholder without anvil WBMT 060102 R/L for internal turning (4) C-carbide,S-steel (5) Right-hand inserts (IR) for right-hand tools (SIR)
| SpareParts | ||
| Designation | InsertScrew | Key |
| SIR/L 0005 H06 | SR 14-552 | T-6/5 |
| SIR/L 0005 H06CB | SR 14-552 | T-6/5 |
| SIR 0005 H06-W | SR 14-552 | T-6/5 |
| SIR/L 0007 K08 | SR 14-558 | T-6/5 |
| SIR/L 0007 K08CB | SR 14-558 | T-6/5 |
| SIR/L 0008 K08U | SR 14-558 | T-6/5 |
| SIR 0008 K08UCB | SR 14-558 | T-6/5 |
| SIR/L 0010 H11 | S11 | T-8/5 |
| SIR 0010 H11B | S11 | T-6/5 |
| SIR/L 0010 K11 | S11 | T-8/5 |
| SIR/L 0010 K11B | S11 | T-8/5 |
| SIR/L 0010 M11CB | S11 | T-8/5 |
| SIR/L 0012 P11CB | S11 | T-8/5 |
| SIR/L 0013 L11 | S11 | T-8/5 |
| SIR/L 0013 M16 | S16S | T-10/5 |
| SIR/L 0013 M16B | S16S | T-10/5 |
| SIR 0016 R16CB | S16S | T-10/5 |
