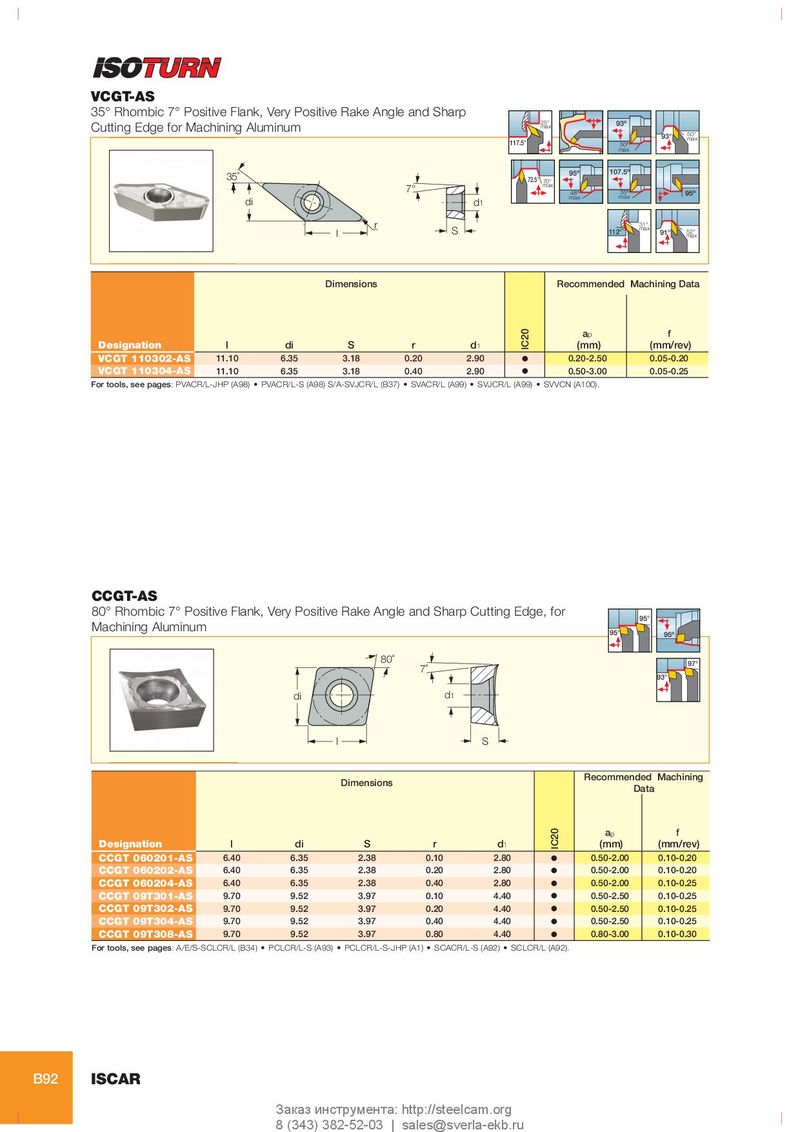

VCGT-AS
35° Rhombic 7° Positive Flank, Very Positive Rake Angle and Sharp
25° 93º
Cutting Edge for Machining Aluminum max
50°
93° max
117.5° 50º
max

95º 107.5º
35˚
35 72.5° 70°
max
7° 48º 35º 95º
max max
di d1
r 31°
max
l S 112° 91° 52°
max


Dimensions Recommended Machining Data


IC20
ap f
Designation l di S r d1 (mm) (mm/rev)
VCGT 110302-AS 11.10 6.35 3.18 0.20 2.90 O 0.20-2.50 0.05-0.20
VCGT 110304-AS 11.10 6.35 3.18 0.40 2.90 O 0.50-3.00 0.05-0.25
For tools, see pages: PVACR/L-JHP (A98) • PVACR/L-S (A98) S/A-SVJCR/L (B37) • SVACR/L (A99) • SVJCR/L (A99) • SVVCN (A100).


CCGT-AS
80° Rhombic 7° Positive Flank, Very Positive Rake Angle and Sharp Cutting Edge, for 95°
Machining Aluminum 95° 95º

80˚ 97°
7˚
93°
di d1

l S

Recommended Machining
Dimensions
Data
IC20


ap f
Designation l di S r d1 (mm) (mm/rev)
CCGT 060201-AS 6.40 6.35 2.38 0.10 2.80 O 0.50-2.00 0.10-0.20
CCGT 060202-AS 6.40 6.35 2.38 0.20 2.80 O 0.50-2.00 0.10-0.20
CCGT 060204-AS 6.40 6.35 2.38 0.40 2.80 O 0.50-2.00 0.10-0.25
CCGT 09T301-AS 9.70 9.52 3.97 0.10 4.40 O 0.50-2.50 0.10-0.25
CCGT 09T302-AS 9.70 9.52 3.97 0.20 4.40 O 0.50-2.50 0.10-0.25
CCGT 09T304-AS 9.70 9.52 3.97 0.40 4.40 O 0.50-2.50 0.10-0.25
CCGT 09T308-AS 9.70 9.52 3.97 0.80 4.40 O 0.80-3.00 0.10-0.30
For tools, see pages: A/E/S-SCLCR/L (B34) • PCLCR/L-S (A93) • PCLCR/L-S-JHP (A1) • SCACR/L-S (A92) • SCLCR/L (A92).


B92 ISCAR
